TPI TPI 22290TH480V


Description

Industry Description

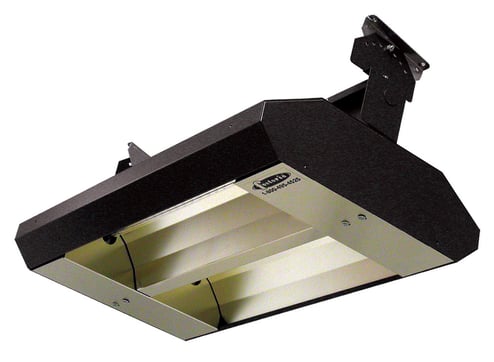

Electric Infrared Heater, Fostoria, 3.2 KW, 480 V, 1 PH, Galvanized Steel Housing, Mul-T-Mount, Dimensions- 24 Length X 15 Width X 10-7/8 Height IN, BTU Rating- 10922, TH Series, 90 Deg Symmetrical

Modified Industry Description

2 LAMP 3.2KW 480V 90SYM MUL-T MOUNT

AD Description

TPI Fostoria 22290TH480V TH Series 1 Phase Mul-T-Mount Electric Infrared Heater, 10922 Btu/hr Capacity, 480 VAC, 3.2 kW Power Rating

Specifications

Application
Indoor/Outdoor-Commercial/Industrial
Beam_Pattern
90 deg Symmetrical
Brand Name
TPI
Color
Brown
Country of Origin
US
DimensionsInches
24 Length X 15 Width X 10-7/8 Height IN
Finish
Enamel Coated/Galvanized
Housing_Material
Galvanized Steel
Model
342-30-THSS-480V
Mounting
Mul-T-Mount
Phase
1
Power_Rating
3.2
Series
TH Series
Special Features

  • 0 to 45 deg tilt at 15 deg increments
  • 2-Lamp wiring
  • 20 ga painted steel housings
  • 23-1/2 in mounting centers
  • 50% higher watt densities for 3-element units
  • 63016489 replacement element
  • Gold anodized aluminum reflectors and end caps
  • High temperature lead wires
  • In-built surface mounting bracket allows for fixture adjustment up to a 45 deg horizontal tilt
  • In-built surface mounting brackets attached to the top wiring channel
  • Listed for recessed applications
  • Listed for suspended, totally exposed (outdoor), high bay (indoor) comfort heating and exterior snow and ice control applications
Standard
cETLus Listed
Sub_Brand
TPI
Type
1-Phase Mul-T-Mount
Voltage Rating
480
Wattage
3,200
