Killark Killark FXSD52
Killark FXSD52
Kirby Risk #: 2926029
UPC: 78393619738, 783936197388, 00783936197388, 50783936197383
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Killark
Description
Industry Description

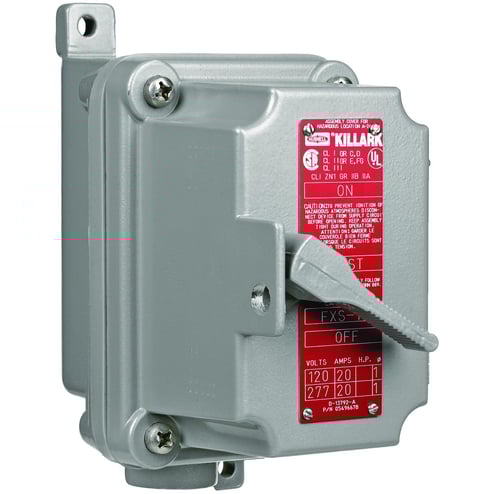

XSD/XSX/FXSD/FXSX SERIES - FXSD SINGLE GANG ALUMINUM MANUAL MOTORSTARTING SWITCH - 2 POLE SINGLE PHASE - FEED-THRU - HUB SIZE 3/4 IN
Specifications
| Application |
Provides manual starting and stopping of small AC or DC motors. Motor running protection when overload heaters are used.
|
|---|---|
| Country of Origin |
US
|
| Length1 |
3.6880
|
| Material |
Aluminum, Copper Free (less than 4/10 of 1%)
|
| Number_Of_Poles |
2
|
| Series |
FXSD
|
| Size |
6-13/16 H X 3-11/16 W X 5-11/32 D
|
| Special Features |
FXSD Series requires no external seals (factory sealed) and are NEMA 3 (raintight) rated. Enclosures are cast copper-free aluminum alloy. Operating shaft is stainless steel. Ground flange joint between bolted cover and box provide required flame path. Provisions for padlocking switch in either "ON" or "OFF" position is standard.
|
| Standard |
UL, CSA, FM APPROVED
|
| Type |
Aluminum manual motor starting switch with overload protection
|
| Voltage Rating |
230
|
