Panduit Panduit BSK10-D


Description

Industry Description

Butt Splice 12 – 10 AWG, KYNAR insulated, bulk package.

Modified Industry Description

Butt Splice, Kynar Insulated, 12 -

AD Description

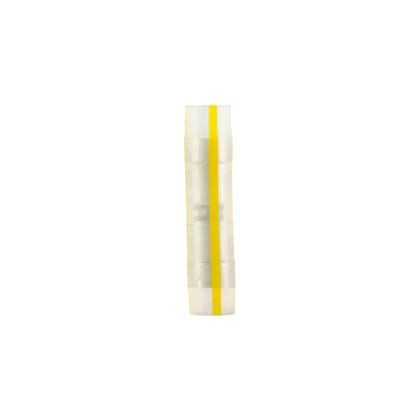

Panduit® Pan-Term® BSK10-D Insulated Loose Piece Butt Splice, 12 to 10 AWG Conductor, 1.24 in L, Sleeved/Standard Barrel, Copper, Yellow Stripe

Vendor Description

Panduit® Pan-Term® splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.

Specifications

Color
Yellow
Conductor Type
Solid/Stranded
Connection
Standard
Conductor Size
12 to 10
Country of Origin
MEX
Finish
Tin Plated
Insulation
Kynar
Length1
1.24
Material
Copper
Series
BSK
Size
12 - 10
Special Features

  • Designed to splice two solid or stranded wires together to repair or lengthen wires
  • For nuclear containment areas and high temperature to 300 deg F (150 deg C) applications
  • Inspection window to visually ensure wire extends all the way to the wire stop
  • Internal wire stop assures proper length of insertion into terminal barrel
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Standard
RoHS Compliant
Sub_Brand
Panduit
Temperature_Rating
300
Type
Insulated Loose Piece
Voltage Rating
600
