Hubbell Hubbell SNAP1223ILINA
Hubbell SNAP1223ILINA
Kirby Risk #: 2921246
UPC: 78358518951, 783585189512, 00783585189512, 30783585189513
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial/Commercial Grade, SNAPConnect Series, Toggle Switches,Illuminated Three Way, 20A 120/277V AC, Ivory, North American
Modified Industry Description
SWITCH,SNAP,3W,ILLUM,20A120/277V,IV
AD Description

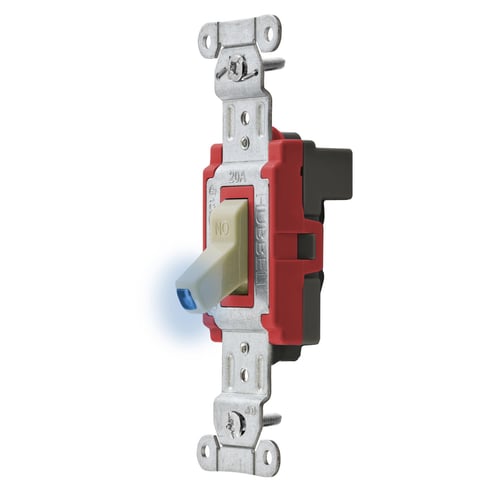

Wiring Device-Kellems SNAPConnect® SNAP1223ILINA 3-Way 2-Position Heavy Duty Illuminated Standard Toggle Switch, 120/277 VAC, 20 A, 5540 W, 1 to 2 hp Power Rating, SPDT Contact
Vendor Description
SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in leu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change-out by maintenance personnel.
Specifications
| Action |
Positive Snap
|
|---|---|
| Actuator |
Toggle
|
| Amperage Rating |
20
|
| Application |
SNAPConnect Heavy Duty
|
| Color |
Ivory
|
| Connection |
Connectorized
|
| Country of Origin |
PR
|
| Enclosure |
None
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
None
|
| Length1 |
4.1600
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| Number_Of_Poles |
1
|
| Operating_Temperature |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Series |
Illuminated
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1, UL20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
General Purpose Switches
|
| Voltage Rating |
120/277
|
| Wattage |
5,540
|
