Hubbell Hubbell HPMA05162

Name: Hubbell HPMA05162
Brand: Hubbell
SKU: 2919668
Price: 167.91 USD
Availability: InStock

Hubbell HPMA05162

Kirby Risk #: 2919668

UPC: 78358534971, 783585349718, 00783585349718

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hubbell

Description

Industry Description

Hubbell Wiring Device Kellems, Signal and Control Products, Mini-Quick,Control Connectors, Male Angled Plug, 5P, 16/5, 62'

Modified Industry Description

MINI-QCK, MALE ANG PLG, 5P 16/5,

AD Description

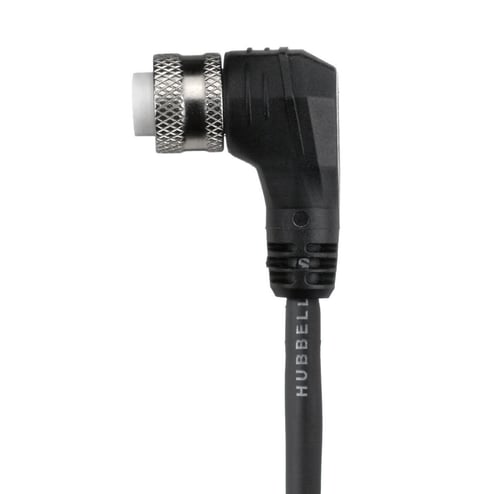

Wiring Device-Kellems Mini-Quick® HPMA05162 Fabricated Plug Connector, 1-1/8-16 UN Right Angle Male Connector, 62 ft L Cable, 5 Poles

Amperage Rating	10
Application	Mini-Quick
Color	Black
Conductor Size	#16AWG
Construction	Fabricated
Country of Origin	USA
Insulation	Thermoplastic Rubber
Number Of Conductors	5-Pole
Number_Of_Poles	5
Special Features	-20 to 105 deg C STOOW and AWM2661, -40 to 105 deg C SEOOW cable -20 to 105 deg C temperature 1000 MW isolation resistance 16 AWG copper conductor 5 MW contact resistance 500 hr salt spray per MIL-STD-1344, method 1001 corrosion resistance Black overmold and cable Cable assembly resists dirt and blends with environment giving a clean look to the installation Ergonomic connector body has an industrial look Insulgrip® connector body design Nickel plated brass coupling nuts and receptacle shells Nickel plated brass metallic coupling nuts and receptacle shells Plating resists corrosion in high abuse environments Third party certified for electrical, mechanical and environmental performance
Standard	UL/CSA
Sub_Brand	Mini-Quick Signal and Control Devices
Temperature_Rating	-20 Deg C to 105 Deg C
Type	Male Angle Plug
Voltage Rating	600 AC/DC
Wattage	6000
