Hubbell Hubbell HBLFRBR
Hubbell HBLFRBR
Kirby Risk #: 2918711
UPC: 78358519266, 783585192666, 00783585192666, 30783585192667
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, Single Pole Devices,Industrial Grade, Female Receptacle, 300/400A 250V DC/600V AC, SingleConductor, Red
Modified Industry Description
SINGLEPOLE, 300/400A FEM BUS RECEP,
AD Description

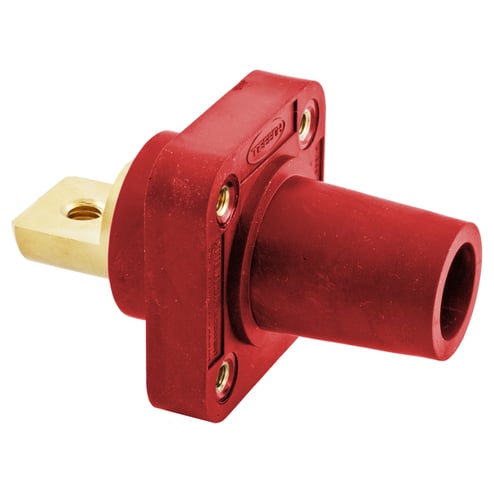

Wiring Device-Kellems HBLFRBR 16 Series 1-Flanged Female Standard Straight Single Pole Receptacle With 300/400 A Plug, 600 VAC/250 VDC, 400 A, 4 to 4/0 AWG Wire, Busbar/Screw
Vendor Description
Hubbell wiring Device-Kellems offers a full line of innovative, high quality, series 16 single pole receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
Specifications
| Amperage Rating |
400
|
|---|---|
| Application |
High Ampacity Connections
|
| Color |
Red
|
| Connection |
Screw Terminals
|
| Conductor Size |
#4 AWG to #4/0 AWG
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Length1 |
3.8000
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
1
|
| Phase |
1
|
| Series |
Series 16
|
| Size |
Standard Sized Product
|
| Special Features |
Standard Product
|
| Standard |
UL 498 and UL 1691
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Flanged Single
|
| Voltage Rating |
600//250
|
| Wattage |
240,000
|
