Hubbell Hubbell HBL15NCBK


Description

Industry Description

Hubbell Wiring Device Kellems, Single Pole Products, Weatherproof Cover,150 Amp Series, Black

Modified Industry Description

SINGLE POLE SER, 15 WP COVER, BK

AD Description

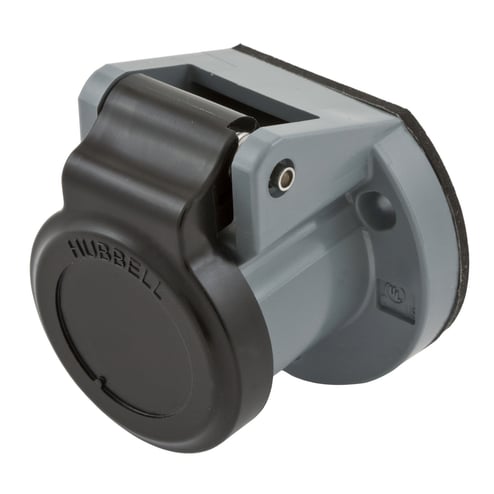

Wiring Device-Kellems HBL15NCBK Molded Non-Metallic Standard Weather Protective Cover, For Use With 150 A 1-Pole Devices, Thermoplastic Elastomer, Black

Vendor Description

Hubbell Wiring Device-Kellems offers a full line of innovative, high quality, series 15 and series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

Specifications

Application
Industrial/Comercial
Brand Name
Hubbell
Color
Black
Country of Origin
PR
Material
Thermoplastic Elastomer
Mounting
Screw Mount
Size
Standard Sized Product
Special Features

  • Accommodates wide range of cables
  • Easily identifiable cable cut-off points for secure fit allows you to easily customize and cut the housing to the required/correct cable size
  • Engineered body design makes installation simple with no need for additional tools and the non-metallic retaining screw helps to make operation safe for all involved
  • Extra long non-conductive inner sleeve reduces force required to install housing over contacts, easier to rotate contact in body for installing retaining screw
  • High conductivity brass contact provides improved performance by helping to reduce operating temperatures and extends life
  • Indoor dry unless protected by additional means
  • Insulgrip® style housing for superior gripping conforms to the user's hand making it easy to connect and disconnect, even with gloves on
  • Lock symbol aids in the mating of devices and provides a clear indication that the devices are properly connected
  • Molded construction
  • Non-conductive retaining screw locks contacts in place and allows for easy installation, prevents contact movement within housing
  • Provides high contact pressure and vibration resistant connection, which helps reduce operating temperatures and extends product life
  • Recessed mounting screw minimizes screwdriver slippage
  • Rounded corners reduce the possibility of catching or snagging on structures or equipment
  • Special screw thread requires fewer turns than most competitors and reduces the risk of a conductive screw being substituted
  • Strip gauge molded into every plug and receptacle housing, simplifies installation and saves time
  • With lock indicator symbol making mating clear and simple, devices can lock 180 deg to prevent unintended disconnects
Standard
UL/CSA
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Molded Non-Metallic Standard
