Ideal Ideal 774115BK
Ideal 774115BK
Kirby Risk #: 2915792
UPC: 78325065035, 783250650354, 00783250650354
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Ideal
Description
Industry Description
IDEAL, Toggle Switch, Heavy-Duty, (On)-Off-(On), Voltage Rating: 125, 227 VAC, Amperage Rating: 20, 10 AMP, Number Of Poles: 2, Action: DPDT, Connection: Spade, 6 Terminals, Actuator: Toggle, Contact Rating: Factory Tested 100000 Cycles To 21 AMP 14.8 VDC DC Rating, Size: 1.300 IN Length X 0.760 IN Width X 0.800 IN Height, Mounting: 1/2 IN Hole Diameter, Operating Cycles: 100000 Cycles Mechanical Life, Operating Temperature: 32 To 185 DEG F, Dielectric Strength: 1500 V, Finish: Solid Brass/Nickel-Plated Bushings, Hp Rating: 1-1/2 HP At 125 To 250 VAC
Modified Industry Description
TOGGLE SWITCH,IDEAL,STD AND
AD Description

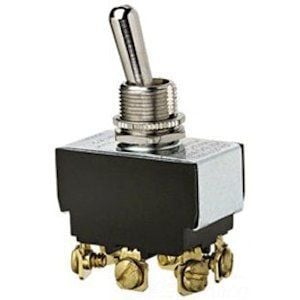

IDEAL® 774115BK Heavy Duty Toggle Switch, 125/277 VAC, 20/10 A, 50/60 Hz, 1-1/2 hp, DPDT ON/OFF/ON
Specifications
| Action |
DPDT
|
|---|---|
| Actuator |
Toggle
|
| Amperage Rating |
20/10
|
| Application |
For Power Tool And Motor Control Switch Applications
|
| Brand Name |
Ideal
|
| Connection |
Spade, 6 Terminals
|
| Contact_Configuration |
DPDT ON/OFF/ON
|
| Contact_Rating |
Factory Tested 100000 Cycles to 21 A 14.8 VDC
|
| Country of Origin |
CHN
|
| Environmental_Conditions |
32 to 185 deg F Operating Temperature
|
| Frequency_Rating |
50/60
|
| Material |
Solid Brass
|
| Mounting |
1/2 IN Hole Diameter
|
| Number_Of_Poles |
2
|
| Operating_Cycles |
100000
|
| Operating_Temperature |
32 To 185
|
| Size |
1.300 IN Length X 0.760 IN Width X 0.800 IN Height
|
| Special Features |
|
| Standard |
CSA, RU Listed, RoHS
|
| Sub_Brand |
Ideal
|
| Type |
Heavy Duty
|
| Voltage Rating |
125/277
|
