Ideal Ideal 30-C1626


Description

Industry Description

SLK,CR,FUSED,1W LINE 2W LOAD

Modified Industry Description

SLK,CR,FUSED,1W LINE 2W LOAD

AD Description

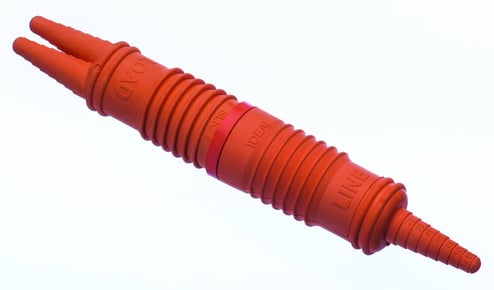

IDEAL® SLK® 30-C1626 Inline Breakaway Fused Disconnect Fuse Kit, 14 to 6 AWG, 14 to 10 AWG Aluminum/Copper Wire, Polypropylene/TPE Insulation, Brass

Vendor Description

The IDEAL® SLK® disconnect fuse kit is a waterproof breakaway safety device that de-energizes roadway lights, streetlights, parking lot lights and other freestanding electrical fixtures in the event of a knockdown or when the fixtures need maintenance. This helps protect first responders, bystanders and service personnel from potentially life threatening electrical shock hazards. IDEAL® worked directly with roadway installation electricians, DOT maintenance crews and specifying engineers to find out what features would really make a difference. The result is an entirely new product that not only performs better but is easier to install and more robust than any other disconnect fuse kit on the market today.

Specifications

Amperage Rating
30
Application
In-Line Breakaway, crimp; fused; 1 wire line side, 6-14 AWG; 2 wire load side, 10-14 AWG
Color
Bright Orange
Country of Origin
USA
Dimensions
1-5/16 in Dia x 8-1/2 in L
Length1
6.0000
Material
Brass/Polypropylene/Thermoplastic Rubber
Special Features

  • Accepts 13/32 x 1-1/2 in midget fuses (non-rejection and rejection type)
  • Bold, clear markings for easy installation
  • Bright orange color for ease of visibility
  • Large selection of configurations wide wire range
  • On breakaway versions, fuse stays in de-energized load side when disconnected
  • One or two wires on line or load side
  • Thermoplastic elastomer boots for excellent durability and environmental protection
  • UL/CSA listed for submersible installations
Standard
UL Listed
Sub_Brand
Ideal
Temperature_Rating
221
Type
In-Line Breakaway Fused
Voltage Rating
600
