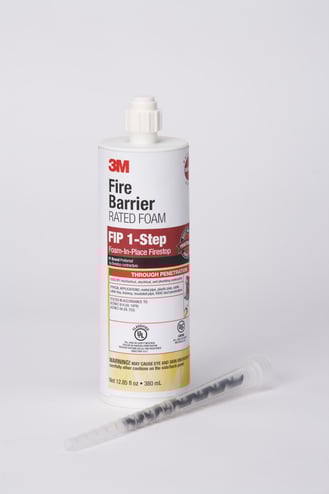

3M 3M FIP-1-STEP


Description

Industry Description

Designed to expand up to 5 times in volume after dispensing, 3M™ Fire Barrier Rated Foam FIP 1-Step is a two-part urethane, smoke, sound and firestopping foam. This intumescent foam can be used to fill the annular space created by pipes and cables penetrating through fire-rated construction. It’s an alternative to mineral wool, bricks, pillows and runny, ineffective foams and is UL listed.

Modified Industry Description

FIRE BARRIER RATED FOAM, 1-STEP, 12.85 FL OZ CART

Specifications

Application
a smoke, sound, and firestopping foam for wall
Brand Name
3M
Color
Maroon
Container
Cartridge
Container_Size
12.85 fl-oz
Container_Type
Cartridge
Country of Origin
DE
Size
12.85 oz
Special Features

  • <1 cfm/sq-ft air leakage
  • Excellent adhesion and does not require backing material in wall or floor applications
  • FIP 1-step shelf life is 16 months in original unopened containers from date of packaging when stored above 68 deg F and below 90 deg F
  • Firestop tested and rated up to 2 hrs
  • Intumescent foam expands when exposed to fire
  • Paintable with primer
  • Re-enterable and repairable foam remains pliable after installation
  • Sag resistant, quick curing formulation that expands up to 5 times in volume during installation
  • STC acoustic barrier: 57 when tested in STC 57 rated wall assembly
Standard
ASTM E814 (UL 1479), ASTM E84 (UL 723)
Sub_Brand
3M
Type
Fire Barrier Sealant Foam
