Ge Industrial GE Industrial THHQL21125


Description

Industry Description

Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q Line used for connection to load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications. 1125 Amps 125 A 11257765

AD Description

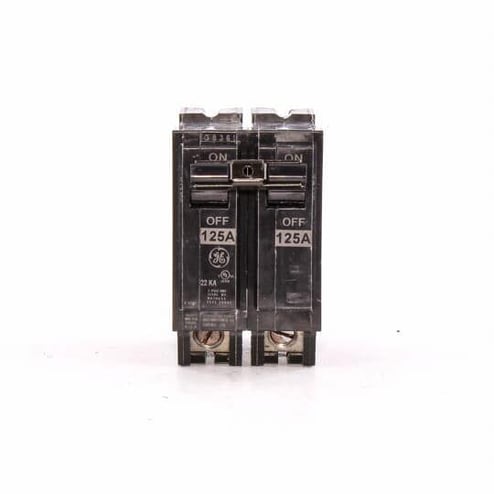

GE THHQL21125 Q-Line® Type THHQL Miniature Circuit Breaker, 120/240 VAC, 125 A, 22 kA Interrupt, 2 Poles

Vendor Description

Q-Line circuit breakers are 1 in W per pole, compact, thermal magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q-Line used for bolting to the bus connections of load centers and lighting panels. All Q-Line circuit breakers feature quick-make/quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Specifications

Amperage Rating
125 A
Application
Electrical distribution and Control
Country of Origin
UKN
Frame
Q-Line
Interrupt_Rating
22kA@120 Vac / 22kA@120/240 Vac
Length1
3.7500
Number_Of_Poles
2
Special Features

  • 22 kA at 120 VAC, 22 kA at 120/240 VAC interrupt rating
  • Fixed instantaneous trip function
  • Fixed long time trip function
  • Standard continuous current rated
  • Suitable for reverse feed applications
Standard
True
Sub_Brand
GE Industrial Solution
Type
Circuit Breakers
Voltage Rating
120/240 V
