Lithonia Lighting Lithonia Lighting LSXR6

Name: Lithonia Lighting LSXR6
Brand: Lithonia Lighting
SKU: 2811197
Price: 107.65 USD
Availability: InStock

Lithonia Lighting LSXR6

Kirby Risk #: 2811197

UPC: 82047609640, 00820476096402

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Lithonia Lighting

Description

Industry Description

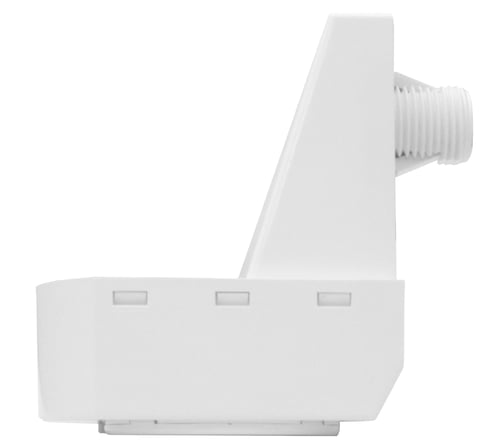

Fixture mount sensor, interchangeable lens, line voltage, High Mount 360deg, SKU - 219EP4

Modified Industry Description

High Mount 360 degree Fixture mount sensor, interchangeable lens

Application	Auditorium, Entertainment/Theatrical, Foyer, Gymnasium, Loading Dock, Manufacturing, Retail, Warehouse/Storage
Brand Name	Lithonia Lighting
Color	White
Country of Origin	MX
Environmental_Conditions	Indoor
Finish	Gloss
Material	Plastic
Mounting	Fixture
Mounting_Type	Fixture
Special Features	1/2 in knockout on fixture 10 VDC maximum dimming level 100% digital PIR detection, excellent RF immunity 4 VDC minimum dimming level 800/1200 W at 120/277 VAC maximum load All lenses included Convenient test mode quickens initial walk and/or photocell testing Default 10 min occupancy time delay Digital push button programming, no tools or analog adjustments required Four interchangeable lenses, high mount 360 deg, low mount 360 deg, high mount aisleway and small motion 360 deg Green LED indicator High and low mount 360 deg Integrated mounting bracket drops lens down 3 in from chase nipple, no bracket accessory required No PIR field calibration or sensitivity adjustments required Non-Volatile settings memory Powers from single or two-phase line connections Reversible hot and load wires - eliminates backwards wiring Single or dual relay versions - designed with robust protection from the harsh switching requirements of T5 fluorescent and LED loads Sinks < 20 mA dimming load
Standard	CSA, CSAus
Sub_Brand	Sensor Switch
Supply_Voltage	120, 208, 240, 277
Temperature_Rating	-10 to 60
Type	Line Voltage
Voltage Rating	120/208/240/277
