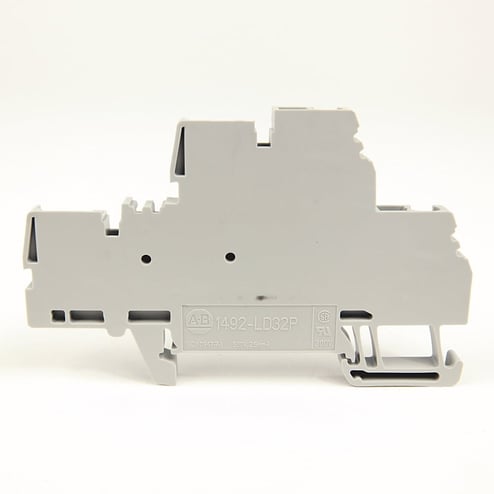

Allen-Bradley Allen-Bradley 1492-LD32P
Allen-Bradley 1492-LD32P
Kirby Risk #: 2783651
UPC: 66207473455, 662074734559, 00662074734559, 10662074734556
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Allen-Bradley
Description
Industry Description
Terminal Block, Spring Clamp Connection, Plug-In Style with 1 Fixed and 1 Plug-In Connection on Each Level, 5.1 x 80.5 x 45mm (0.20 x 3.17 x 1.77 in), 1 Pole, Gray, VOLTAGE RATING UR - 300V AC/DC, CSA - 300V AC/DC, IEC - 500V AC/DC, MAX
Modified Industry Description
TERMINAL BLOCK
Specifications
| Amperage Rating |
17.5/20/24
|
|---|---|
| Application |
Plug-In connections,indv or grouped configurations,Terminal Blocks contain dual UL/CSA used at 300V 20A,600V,5A rating
|
| Brand Name |
Allen-Bradley
|
| Color |
Gray
|
| Conductor Size |
UR - #26...12 AWG, CSA - #26...12 AWG, IEC - 0.5...2.5 mm²
|
| Country of Origin |
CZ
|
| Special Features |
Spring Clamp Connection,Plug-In Style 1 Fixed,1 Plug-In Connection on Each Level,1 Pole,Gray,Pkg. Qty. of 50
|
| Standard |
UL,CSA,CE,CUL,KC
|
| Sub_Brand |
Allen-Bradley
|
| Terminal_Size |
5.1 x 80.5 x 45mm (0.20 x 3.17 x 1.77 in)
|
| Type |
IEC Spring Clamp Plug-In Connection Terminal Block
|
| Voltage Rating |
300/500/600//300/500/600
|
