RAB Lighting RAB Lighting GPLED78NW


Description

Industry Description

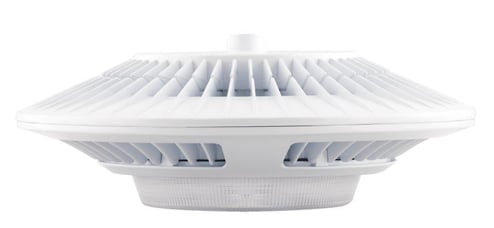

PENDANT 78W NEUTRAL GLED WITH PRISMATIC LENS WHITE

Modified Industry Description

78w 4000K W/ LENS PENDL MOUNT LED

AD Description

RAB GPLED78NW GLED™ Low Profile Garage Light,) LED Lamp, 88 W Fixture, 120/208/240/277 VAC, White Housing

Vendor Description

Fewer fixtures, high output, huge savings. the high performance GLED™ will yield a higher light output than its HID equivalent, maximizing spacing criterion with up to 25% reduction in fixture count.

Specifications

Amperage Rating
0.74
Country of Origin
US
Dimensions
6 in H x 16 in W
Lamp_Type
LED
Length1
19.5000
Lumens
4084
Mounting
Ceiling
Mounting_Type
Pendant
Series
GLED™
Special Features

  • -40 to 40 deg C temperature
  • 67 LPW efficacy
  • 88% efficacy
  • Environmentally friendly polyester powder coatings are formulated for high durability and long lasting color and contains no VOC or toxic heavy metals
  • High performance output maximizes spacing criterion
  • High temperature silicone gasket
  • High temperature silicone gaskets
  • Lock screw provided for pendant mount
  • Lock screw provided on fixture
  • Low profile design ideal for parking garages
  • Our environmentally friendly polyester powder coatings are formulated for high durability and long lasting color and contain no VOC or toxic heavy metals
  • Pendant provided by others, threads are 1/2 in NPS, stem insertion depth not to exceed 5/8 in, lock screw provided on fixture
  • Specular vacuum metalized polycarbonate reflector
  • Superior heat sinking with integrated air flow fins
  • Up to 25% reduction in fixture count
  • Without photocell
Sub_Brand
RAB Lighting
Type
Low Profile
Voltage Rating
120/208/240/277
Wattage
78
