Crouse-Hinds Crouse-Hinds EFSC215 SA


Description

Industry Description

EDS FS PUSHBUTTONS STATIONS FRONT OPERATED

Modified Industry Description

EDS FS PUSHBUTTONS STATIONS FRONT

AD Description

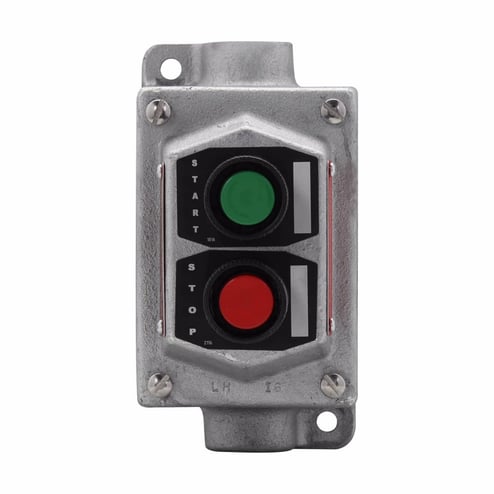

Crouse-Hinds EFSC215 SA 2-Circuit Factory Sealed Heavy Duty Through Feed Pushbutton Control Station With Pushbuttons, 600 VAC, 1NO-1NC Contact, 2 Operators, NEMA 3/7B/7C/7D/9E/9F/9G NEMA Rating

Specifications

Application
Ind Facilities & Factories - Facility: Power Distribution and Control
Country of Origin
MX
Finish
Natural
Length1
6.7200
Material
Copper Free Aluminum
NEMA_Rating
NEMA 3/7B/7C/7D/9E/9F/9G
Operating_Temperature
-50 to 60
Series
EFS
Special Features

  • 3/4 in hub
  • Close tolerances in machining of wide, mating flanges and journalled shafts and bearings for front button operation, produces flametightness of enclosure joints
  • Eliminate external seals
  • In conjunction with magnetic starters or contactors for remote control of motors
  • Large machine screws for fastening covers to bodies
  • Lockout hole for padlock having 1/4 in hasp is provided when used with covers for front lever and side rocker type operation
  • Lockout provisions on front operated pushbutton (marked "STOP" and "OFF") and selector switch covers
  • Mounting lugs and taper tapped hubs with integral bushings
  • On enclosures with front lever and side rocker type operating handles, threaded type shafts and bushings are used to ensure flame tightness
  • Standard neoprene covers for front operated pushbuttons, prevents accumulation of dirt and entrance of water around operating shafts
  • To prevent arcing of enclosed device from causing ignition of a hazardous atmosphere external to the enclosure
  • When stop is indicated, button is automatically red, when start is indicated, button is automatically green, otherwise, black buttons are standard
Sub_Brand
Crouse-Hinds series
Type
2-Circuit Factory Sealed Heavy Duty Through Feed
Voltage Rating
600
