Crouse-Hinds Crouse-Hinds LB200M CG


Description

Industry Description

2 EG MI LB CONDUIT BODY WITH GASKET

Modified Industry Description

2 FORM 5 LB COND BODY CVR GSKT MALL

AD Description

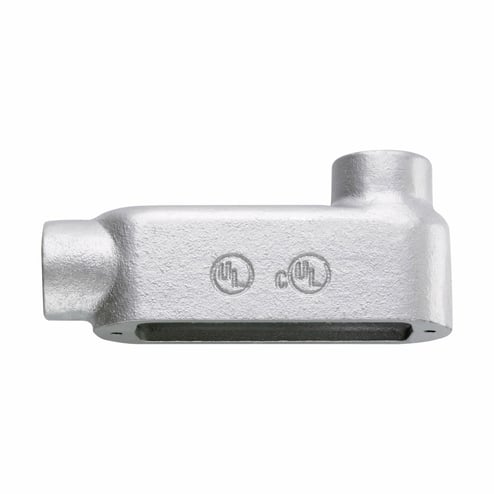

Crouse-Hinds Condulet® SnapPack™ LB200M CG Type LB Conduit Body With Cover, Neoprene Gasket, 2 in Hub, 5, 73 cu-in, Malleable Iron, Electro-Galvanized/Aluminum Acrylic Painted

Vendor Description

Crouse-Hinds Form 5 conduit outlet bodies are ideal for threaded rigid/IMC conduit systems in commercial and industrial applications. Made from durable malleable iron, the line offers convenient features such as built-in rollers to facilitate wire pulling, solid neoprene gaskets that can be easily converted to the open type, integral bushings for protection of wire insulation and sheet steel or cast malleable iron covers with self-retaining stainless steel cover screws. The bodies and covers are interchangeable with Appleton® Form 35® and O-Z/Gedney® malleable iron conduit outlet bodies and are suitable for corrosive environments due to a tough electro galvanized finish. The offering includes all standard configurations and sizes from 1/2 to 4 in.

Specifications

Application
Rigid/IMC Conduit
Country of Origin
IN
Finish
Electrogalvanized With Aluminum Acrylic Painted
Length1
5.5000
Material
Malleable Malleable
Special Features

  • Domed sheet steel covers provide additional cubic capacity
  • Electro-galvanized and aluminum acrylic paint finish for corrosion resistance and durability
  • Malleable iron construction provides high impact resistance and durability
  • Smooth and rounded integral bushings for protection of wire insulation
  • Solid neoprene gaskets may be converted to open type by pulling out perforated center section
  • Stainless steel self-retaining cover screws
Standard
UL 514B, CSA C22.2, CUL
Sub_Brand
Eaton Crouse-Hinds
Type
LB
