Crouse-Hinds Crouse-Hinds TMCX075 1 L


Description

Industry Description

BARRIER GLAND 3/4 NPT SZ1 ALUMINUM LIQ

Modified Industry Description

BARR GLAND 3/4 NPT SZ1 ALU LIQ

AD Description

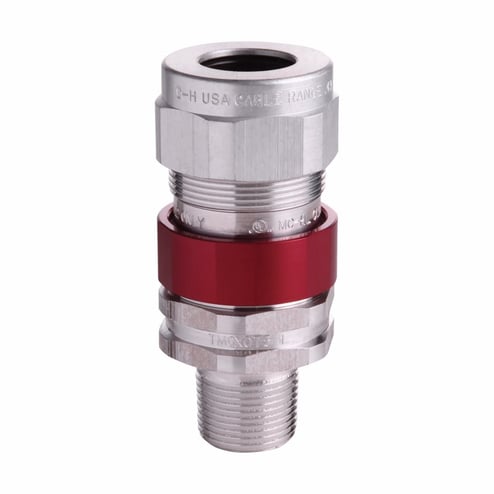

Crouse-Hinds Terminator™ ll TMCX075 1 L Explosionproof Cable Gland Connector, 3/4 in Trade, 0.49 to 0.9 in Cable Openings, Aluminum, Natural

Vendor Description

The Terminator™ II TMCX Cable Gland is an armoured barrier, non-armoured barrier and TECK armoured gland used to terminate cable in hazardous locations. Its unique design features, coupled with our new fast curing Chico® LiquidSeal compound, make the Terminator II TMCX Cable Glands the easiest and safest solution available.

Specifications

Application
MC, MC-HL and TECK Arm Cable and Unarm Cable
Color
Natural/Red
Connection
Cable OD 0.49 to 0.90 inch
Country of Origin
US
Finish
Natural
Length1
4.0500
Material
Aluminum
Mounting
3/4" NPT
Series
TMCX
Size
3/4 NPT, Size 1
Special Features

  • 0.4 to 0.86 in OD armor
  • 1-3/4 in across corner
  • 2-piece union design
  • 3.05 in gland length
  • Aluminum with liquid compound
  • Armored barrier, TECK armored and non-armored barrier gland
  • Chico LiquidSeal, an innovative liquid compound with fast gel and cure times, reduces waiting times
  • Complete with integral dam to facilitate liquid pour
  • Designed to minimize the opportunity for incorrect assembly
  • Full coverage of all popular cables and hub sizes, ensuring a perfect seal in all instances
  • Integral union design reduces the number of times the gland has to be assembled and disassembled during installation
  • Mating components have generous lead-ins to ensure that assembly is as trouble-free as possible, even with the heaviest cables
  • Metal-clad and TECK (interlocked or continuously welded corrugated armored), unarmored and tray cable - TC, TC-ER (HL)
  • Metric size threads allow interfacing to European machinery
  • NEMA 4 and IP56
  • Simple selection process and field preparation aids to ensure the right gland is selected every time
  • Use of neoprene seal allows use in temperatures from -40 to 60 deg C for specific temperature information, please contact your local sales representative
  • Use of nickel plated brass and stainless steel to increase corrosion resistance and maintain integrity in the harshest environments
Standard
UL and cUL Class 1, Div 1 (ABCD) Class 2 (EFG)
Sub_Brand
Eaton Crouse-Hinds
Temperature_Rating
-40 to 60
Type
Explosionproof
