Crouse-Hinds Crouse-Hinds ENR5201 M4


Description

Industry Description

20 AMP 125 VOLT DF INTERLOCK RECEPTACLE UNIT

Modified Industry Description

20A 125V DF INTRLCK RCPT UNIT

AD Description

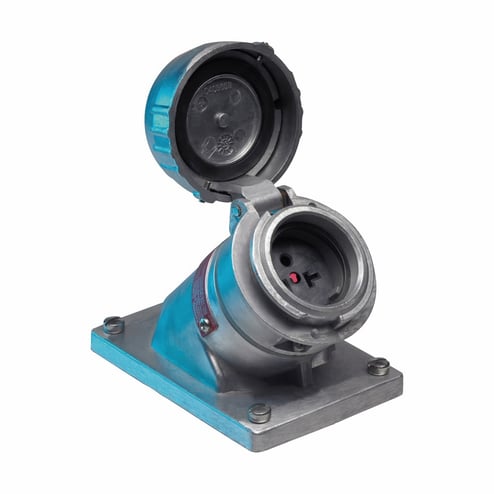

Crouse-Hinds Ark-Gard® ENR5201 M4 ENR Premier Dead Front Interlocked Explosionproof Receptacle Unit, 125 VAC, 20 A

Vendor Description

The premier line of ENR Receptacles (M4) come equipped with exclusive features that increase the life of the product, reduce maintenance costs, and eliminate the need to purchase costly replacement parts. There is no other product offering on the market today that comes equipped with time-saving saddle clamp terminals or the added safety of a lockout/tagout hole. The premier ENR Receptacle Series is the ideal solution for applications where increased safety and reliability are critical.

Specifications

Amperage Rating
20
Application
Ind Facilities & Factories - Facility: Power Distribution and Control
Country of Origin
MUL
Dimensions
5.0000 X 3.5000 X 5.0000
Enclosure
NEMA 3/3R/7B/7C/7D/9F/9G/12
Length1
6.4000
Material
Die Cast Copper Free Aluminum
NEMA_Rating
NEMA 5-20R
Series
ENR Premier
Special Features

  • Ark-Gard® 2 receptacle incorporates three spring-loaded slide keys that prevent the receptacle face plate from being rotated until the ENP plug is fully inserted into the receptacle
  • Dead front interlocked circuit breaking, dust-ignitionproof and raintight
  • Factory sealed chamber encloses the potential arcing components between two explosionproof threaded joints, these threads are specially coated to guarantee freedom of movement, which ensures ON-OFF action, no additional seals are required
  • Gasketed screw cap cover design offers superior protection from harsh environments for increased product life
  • In making or breaking the circuit, any resulting electrical arc is confined in the factory sealed chamber
  • Lockout tagout hole complies with OSHA lockout tagout requirements
  • Protected hinged cover design provides 360 deg protection around cover hinge to reduce damage from dirt and corrosion
  • Saddle clamp terminals reduce installation and maintenance costs with easy-to wire, time-saving terminals
  • The plug is then rotated, closing the circuit, as rotation begins, the plug becomes locked in the receptacle and cannot be accidentally disengaged
  • To make the connection, the ENP plug is fully inserted and the receptacle face moved inward by pushing the plug forward
Sub_Brand
Eaton Crouse-Hinds
Type
Dead Front Interlocked
Voltage Rating
125
