B-Line B-Line UG204FSS
B-Line UG204FSS
Kirby Risk #: 2604376
UPC: 78205126000, 782051260007, 00782051260007
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: B-Line
Description
Industry Description

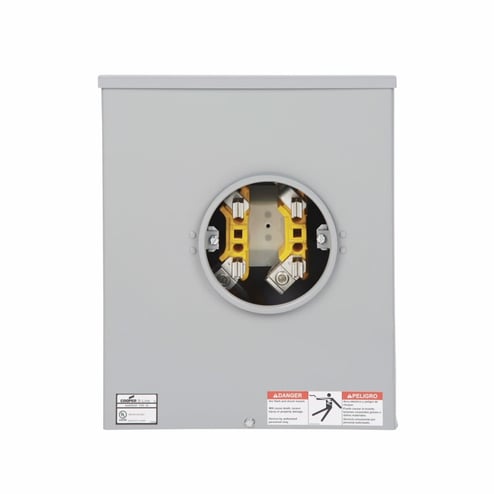

MTR/ENCLOSURE 200A 4-PT UG FL 250 STAINLESS
Modified Industry Description
MTR/ENCLOSURE 200A 4-PT UG FL 250
Specifications
| Amperage Rating |
200
|
|---|---|
| Application |
SELF CONTAINED METERING,NO BYPASS (RING TYPE),Underground Feed, Watt hour Meters
|
| Country of Origin |
US
|
| Dimensions |
6.0000 X 14.0000 X 17.0000
|
| Enclosure |
NEMA 3R
|
| Finish |
SS4
|
| Length1 |
6.0000
|
| Material |
78205126000
|
| Mounting |
Flush
|
| Mounting_Type |
Flush
|
| NEMA_Rating |
NEMA 3R
|
| Phase |
1
|
| Size |
14 In Width X 6 In Depth X 17 In Height
|
| Special Features |
Number Of Positions 1, 4 Jaws, 3-Wire, Includes Snap Type Sealing Ring, Finish ANSI 61 Gray Acrylic Electrocoated, Terminal Size 6 AWG To 250 KCMIL
|
| Standard |
UL 414
|
| Sub_Brand |
EATON B-LINE SERIES
|
| Type |
Self-Contained
|
| Voltage Rating |
600
|
