B-Line B-Line SW02062S1GR1N
B-Line SW02062S1GR1N
Kirby Risk #: 2604206
UPC: 78205138496, 782051384963, 00782051384963
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: B-Line
Description
Industry Description
MTR ENCL CT RATED 6PT
Modified Industry Description
MTR ENCL CT RATED 6PT
AD Description

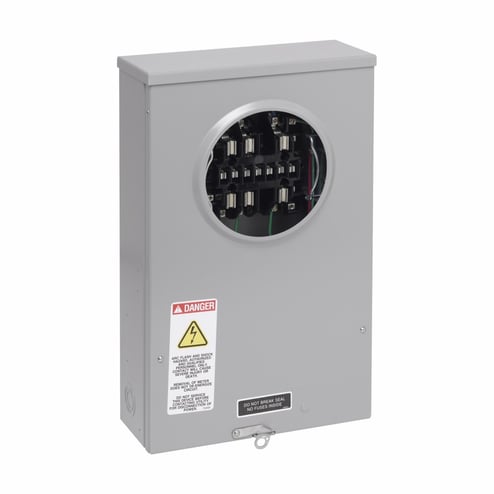

B-Line SW02062S1GR1N Meter Sockets - Transformer Rated, 600 VAC, 20 A, 1 Phase, NEMA 3R Enclosure
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
CURRENT TRANSFORMER,CT METER SOCKETS SCH. B,Underground Feed
|
| Country of Origin |
US
|
| Dimensions |
20-1/8 in H x 12-1/4 in W x 5-1/4 in D
|
| Enclosure |
NEMA 3R
|
| Finish |
GRY
|
| Length1 |
5.2500
|
| Material |
78205138496
|
| Mounting |
Surface
|
| Mounting_Type |
Surface
|
| Phase |
1
|
| Size |
12-1/4 In Width X 5-1/4 In Depth X 20-1/8 In Height
|
| Special Features |
Number Of Positions 1, With Pre-Wired Test Switch, 1 Piece Enclosure Cover, Number Of Terminals 6, Bypass 7 Pole Test Switch Without Cover, Conducto
|
| Standard |
UL 414
|
| Sub_Brand |
EATON B-LINE SERIES
|
| Type |
Current Transformer Metering, Ringless
|
| Voltage Rating |
600
|
