B-Line B-Line PB3

Name: B-Line PB3
Brand: B-Line
SKU: 2603907
Price: 356.12 USD
Availability: InStock

B-Line PB3

Kirby Risk #: 2603907

UPC: 78205170075, 782051700756, 00782051700756

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: B-Line

Description

Industry Description

TYPE 12 STANDARD PUSHBUTTON ENCLOSURE

Modified Industry Description

TYPE 12 STANDARD PUSHBUTTON

AD Description

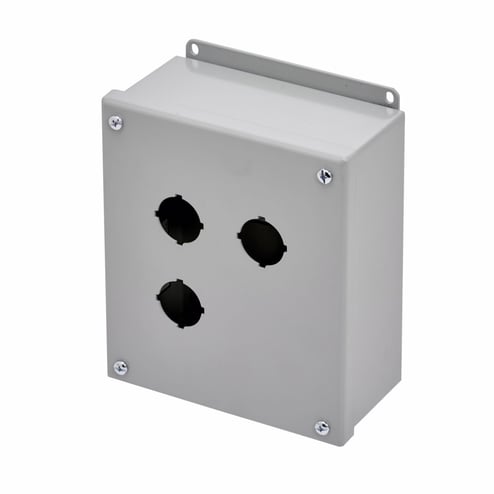

B-Line PB3 3-Hole Pushbutton Enclosure With Captive Screw, 7-1/4 in L x 6-1/4 in W x 3 in D, NEMA 4X/12/13/IP65, 3 Outlets, Steel

Application	Standard Oil-Tight Pushbutton, Pilot Light, Switch
Color	Gray
Country of Origin	US
Finish	Polyester Powder Coated
Length1	7-1/4
Material	Steel
Mounting	Wall, Feet
Mounting_Type	Wall/Feet
NEMA_Rating	NEMA 4X/12/13/IP65
Series	PB Series
Size	6.25 In Width X 3.00 In Depth X 7.25 In Height
Special Features	All continuous welded seams are finished smooth Cover has a fixed oil resistant gasket Cover has concealed, detachable hinges which allow for quick removal and can be hinged ON either side Cover is pre-punched with standard 30.5 mm or miniature 22.5 mm "4-way" pushbutton holes External mounting feet are provided for secure wall mounting Weldnut in body of enclosure for grounding
Standard	UL 508, CSA C22.2, IEC 60529
Sub_Brand	EATON B-LINE SERIES
Type	NEMA 12, IP65, Hinged Cover
