B-Line B-Line 886RTSC

Name: B-Line 886RTSC
Brand: B-Line
SKU: 2601602
Price: 149.38 USD
Availability: InStock

B-Line 886RTSC

Kirby Risk #: 2601602

UPC: 78205134200, 782051342000, 00782051342000

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: B-Line

Description

Industry Description

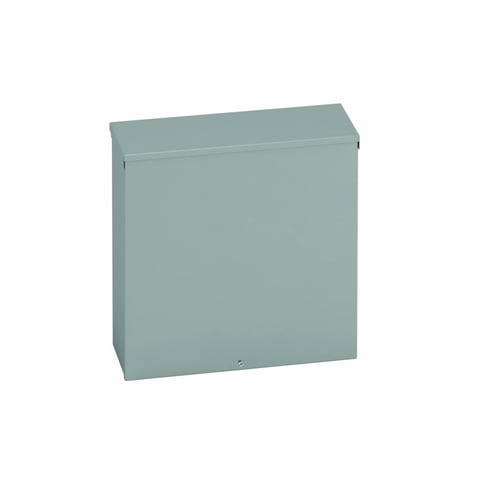

N3R SC ENCLOSURE W/ KO 8X8X6

Modified Industry Description

N3R SC Enclosure W/ KO 8X8X6

Application	Wiring Boxes, Junction and Pull Boxes
Color	Gray
Country of Origin	US
Dimensions	6.0000 X 8.0000 X 8.0000
Finish	Acrylic Electro Coated
Length1	8
Material	Galvaneal Steel
Mounting_Type	Surface
NEMA_Rating	NEMA 3R/IP32
Size	8.00 In Width X 6.00 In Depth X 8.00 In Height
Special Features	Cover is held secure by sliding it under the top end flange and fastening it with plated screws on the bottom end flange Enclosure and cover are fabricated from code gauge galvaneal steel for painted or galvanized steel Enclosure body has embossed mounting holes on the back
Standard	UL 50, CSA C22.2, IEC 60529
Sub_Brand	EATON B-LINE SERIES
Type	NEMA 3R, IP32, Screw Cover
