B-Line B-Line 864-4XFCHQRC

Name: B-Line 864-4XFCHQRC
Brand: B-Line
SKU: 2601395
Price: 277.08 USD
Availability: InStock

B-Line 864-4XFCHQRC

Kirby Risk #: 2601395

UPC: 78205152391, 782051523911, 00782051523911

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: B-Line

Description

Industry Description

TYPE 4X FIBERGLASS CONTINUOUS HINGE COVER ENCLOSURE, PAD-LOCKABLE ENCLOSURE, 8X6

Modified Industry Description

TYPE 4X FIBERGLASS CONTINUOUS HINGE

AD Description

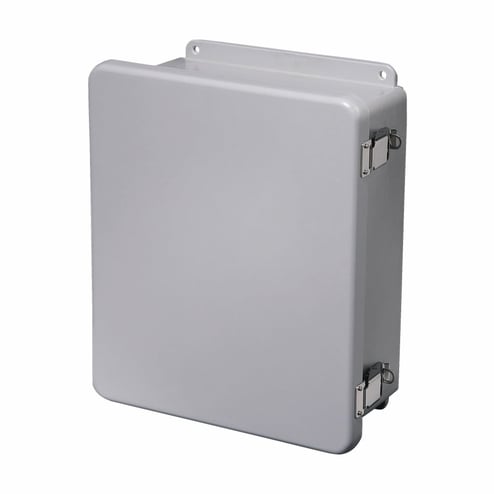

B-Line 864-4XFCHQRC JIC Enclosure, 8 in L x 6 in W x 4 in D, NEMA 4X NEMA Rating, Fiberglass Reinforced Polyester

Application	Electrical/Electronic Control and Instrument, Indoor/Outdoor, Harsh Environment
Color	Gray
Country of Origin	US
Dimensions	4.7400 X 7.5000 X 9.6200
Finish	FGL
Length1	8
Material	Fiberglass Reinforced Polyester
Mounting	Wall
Mounting_Type	Wall
NEMA_Rating	NEMA 4X
Size	Overall Dimension 7.50 In Width X 4.74 In Depth X 9.62 In Height, Inside Dimension 5.74 In Width X 4.45 In Depth X 7.73 In Height
Special Features	300 series stainless steel used ON all external hardware Captive screws provide smooth surfaces Chemical resistance Enclosures are an impact resistant, non-conductive, lightweight hot compression molded fiberglass reinforced polyester Full length stainless steel hinged cover Integral flange molded-in place for ease of mounting Integral mounting bosses utilize threaded brass inserts accepting #10-32 screws for mounting optional panel Non-flame propagating self extinguishing Padlocking latches provide quick access and optional closure locking (padlock not included) Poured polyurethane seamless gasket provides watertight, dust-tight environmental seal Protects against corrosion, windblown dust and rain, splashing water, hose directed water and prolonged submersion Rounded edges reduce build-up of dust and debris
Standard	UL 50, CUL, CSA C22.2
Sub_Brand	EATON B-LINE SERIES
Temperature_Rating	-40 to 250
Type	NEMA 4X, JIC, Hinged Cover
