B-Line B-Line 6606-12LW


Description

Industry Description

NEMA 12 LAY-IN WIREWAY 6.00 STR SECTION

Modified Industry Description

NEMA 12 LAY-IN WIREWAY 6.00 STR

AD Description

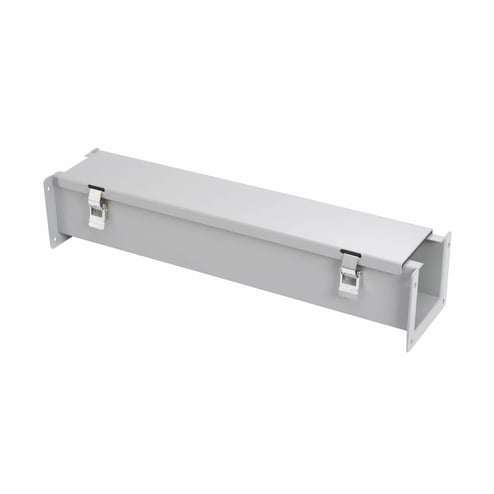

B-Line 6606-12LW Straight Section Lay-In Wireway, 6 in L x 6 in W x 6 in H, Hinged/Latched Cover, Steel

Vendor Description

B-Line is a leading manufacturer of quality support systems and enclosures for the electrical, mechanical and communications industries. Our products include bolted framing, strut systems and fittings, cable tray, cable management, comm/data equipment, cabinets, enclosures and metering devices, as well as pipe hangers and mechanical supports. Our product lines are manufactured in modern facilities throughout the United States, United Kingdom and the Kingdom of Saudi Arabia and are used in a variety of applications in the commercial, industrial, utility and OEM markets.

Specifications

Application
Control and Power Cable
Color
Gray
Country of Origin
US
Dimensions
6.0000 X 6.0000 X 6.0000
Enclosure
NEMA 12, IP54
Finish
Phosphate Undercoated/Polyester Powder Coated/Painted
Length1
6
Material
Steel
NEMA_Rating
NEMA 12/IP54
Special Features

  • All continuous welded seams are finished smooth
  • All covers and sealing plates can be hinged completely open or removed to allow for continuous lay in cable feed
  • All straight sections and fittings are furnished with sealing plate kits
  • An oil resistant gasket is provided for installation between flanges
  • ANSI 61 polyester powder, wash and phosphate undercoat
  • Covers are secured to the wireway and fitting body with heavy duty butt hinges and quick release latches
  • Covers have a fixed, oil resistant gasket
  • External and internal edges are rounded to prevent injury or damage to cable
  • Flanges are 10 ga steel
  • Wireway body and cover are fabricated from 14 ga steel
Standard
UL 870, CSA C22.2, IEC 60529
Sub_Brand
EATON B-LINE SERIES
Type
Straight Section
