B-Line B-Line 626012-4FD3PT


Description

Industry Description

Type 4 DD Floor-Standing 3-Point Locking Encl 62x60x12

AD Description

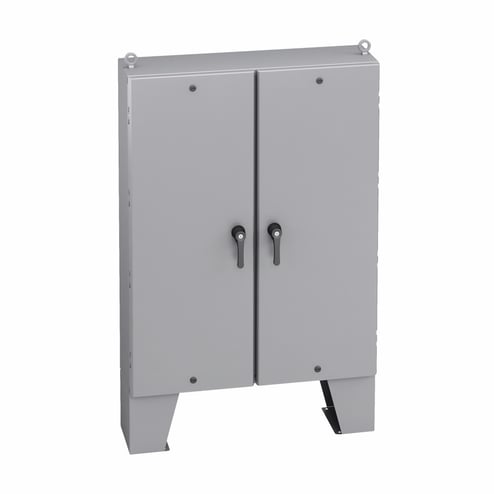

B-Line 626012-4FD3PT 2-Door Ground Mount Enclosure, 60 in W x 12 in D, NEMA 4, Steel

Vendor Description

EATON B-Line series enclosure solutions are designed to meet our customer requirements. From standard stock product to modified enclosures, our enclosure experts are available to help you choose the enclosures you want, in the time you need them.

Specifications

Application
INDUSTRIAL ENCLOSURES,DOUBLE-DOOR ENCL TYPE 4 S
Color
Gray
Country of Origin
US
Dimensions
12.0000 X 60.0000 X 62.0000
Finish
GRY
Length1
12.0000
Material
78205188651
Mounting_Type
Ground
NEMA_Rating
4
Size
60.84 IN X 15.871 IN X 77.152 IN
Special Features

  • Additional quarter turn latches provided at the top and bottom on all enclosure door
  • All continuous welded seams are finished smooth
  • ANSI 61 gray polyester powder finish
  • Door have a seamless poured in place gasket
  • Doors are secured to the body with removable concealed hinges and a center locating 3-point key locking and padlock handle mechanism which closes the right side door over the left door
  • Enclosure and door are fabricated from 12 ga steel
  • Formed lip around enclosure opening diverts liquids and contaminants
  • Ground stud provided on door and body
  • Heavy gauge angle supports and 0.375 to 16 collar studs are provided for mounting optional panel
  • Large lifting eyebolts are supplied
  • Modern bevel profile on both sides of enclosure door
  • Mounting legs are provided for floor mounting
  • Print pocket provided
  • Removable center post for easy panel installation
  • Wash and phosphate undercoat
Standard
UL 50,NEMA,CSA C22.2.
Sub_Brand
Electrical Enclosures
Type
Type 4 panel enclosures
