B-Line B-Line 443-12SC

Name: B-Line 443-12SC
Brand: B-Line
SKU: 2600509
Price: 211.28 USD
Availability: InStock

B-Line 443-12SC

Kirby Risk #: 2600509

UPC: 78205120035, 782051200355, 00782051200355

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: B-Line

Description

Industry Description

TYPE 12 JIC SCREW COVER ENCLOSURE, 4X4X3

Modified Industry Description

TYPE 12 JIC SCREW COVER ENCLOSURE,

AD Description

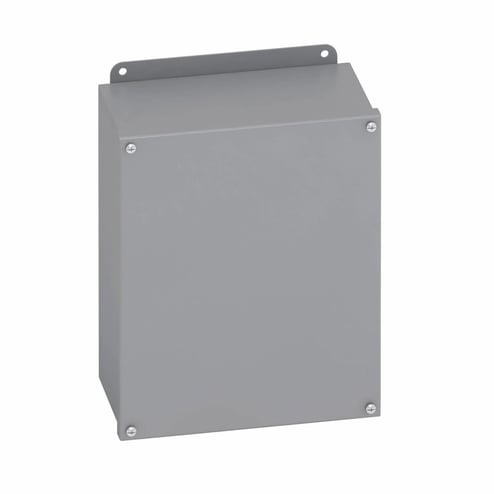

B-Line 443-12SC 1-Door JIC Enclosure, 4 in W x 3 in D, Screw Cover, NEMA 12/IP65, Steel

Application	Electrical Control and Instruments
Color	Gray
Country of Origin	US
Dimensions	3.0000 X 4.0000 X 4.0000
Finish	Polyester Powder Coated
Length1	3.0000
Material	Steel
Mounting	External Feet, Wall
Mounting_Type	External Feet/Wall
NEMA_Rating	NEMA 12/IP65
Size	4.00 In Width X 3.00 In Depth X 4.00 In Height
Special Features	#10-32 weldnuts are provided for mounting optional panel on 6 x 4 in and larger enclosures All continuous welded seams are finished smooth Cover has a fixed oil resistant gasket Cover is attached with captive screws which thread into sealed well nuts Enclosure and cover are fabricated from 16 ga steel External mounting feet are provided for secure wall mounting Ground stud provided on cover Polyester powder coated over wash and phosphate undercoat 16 ga steel Protects against circulating dust, falling dirt and dripping non-corrosive liquids
Standard	UL 508, CSA C22.2, IEC 60529
Sub_Brand	EATON B-LINE SERIES
Type	1-Door
