B-Line B-Line 24244TCF

Name: B-Line 24244TCF
Brand: B-Line
SKU: 2599584
Price: 1201.77 USD
Availability: InStock

B-Line 24244TCF

Kirby Risk #: 2599584

UPC: 78205120366, 782051203660, 00782051203660

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: B-Line

Description

Industry Description

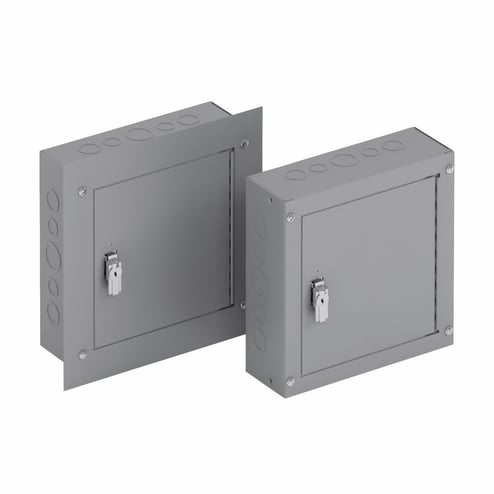

TEL CAB FLUSH W/ KO 24X24X4

Modified Industry Description

Tel Cab Flush W/ KO 24X24X4

Application	Electrical Control and Instruments, Wiring Boxes, Junction Boxes, Pull Boxes, Telephone and Communication Cable Termination, Spare Fuse Cabinet, Con
Color	Gray
Country of Origin	US
Dimensions	4.0000 X 24.0000 X 24.0000
Finish	Acrylic Electrocoated
Length1	4.0000
Material	Steel
Mounting	Flush
Mounting_Type	Flush
NEMA_Rating	NEMA 1/IP30
Size	24.00 In Width X 4.00 In Depth X 24.00 In Height
Special Features	ANSI 61 gray acrylic electro coated finish Cabinet body has mounting holes on the back Cabinet covers are fabricated from 14 ga steel Cupped washer and bright finish oval head screw used to protect trim cover finish and improve appearance Directory card holder on all trim covers wider than 18 in Doors have either a continuous or heavy duty butt hinge Double door construction on trim covers fitting cabinets when wider than 24 in Knockouts on sides, top and bottom ends are standard on cabinets 24 inches wide or smaller T-handle 3-point lock with key furnished on 48 in high single-door and all double door trim covers Trim covers can be ordered separately and used with type 1 screw cover enclosures Tumbler lock with key furnished on single-door trim cover less than 48 in high Wash and phosphate undercoat
Standard	UL 50, CSA C22.2, IEC 60529
Sub_Brand	EATON B-LINE SERIES
Type	Continuous/Heavy Duty Butt Hinge
