B-Line B-Line 24206-SD


Description

Industry Description

TYPE 4/12 SINGLE SOLID DOOR ENCLOSURE, 24X20X6

Modified Industry Description

TYPE 4/12 SINGLE SOLID DOOR

AD Description

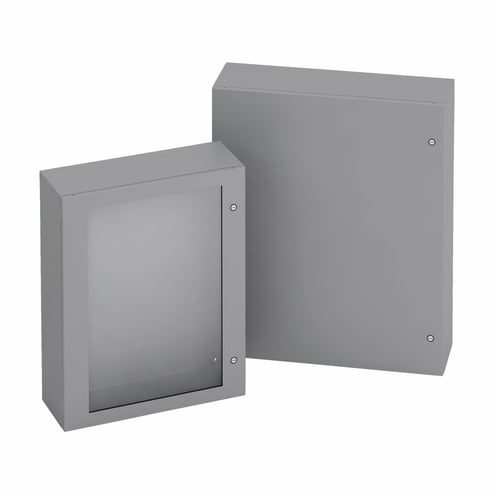

B-Line Premier™ 24206-SD 1-Solid Door Quarter-Turn Flush Latch Slotted Electrical Enclosure, 24 in L x 20 in W x 6 in D, NEMA 4/12 NEMA Rating, Steel

Specifications

Application
Indoor/Outdoor
Color
Gray
Country of Origin
US
Dimensions
6.0000 X 20.0000 X 24.0000
Finish
Polyester Powder Coated/Phosphate Undercoat
Length1
24
Material
Steel
Mounting
Wall
Mounting_Type
Wall
NEMA_Rating
NEMA 4/12/IP66
Size
20.00 In Width X 6.00 In Depth X 24.00 In Height
Special Features

  • 0.312-18 collar studs are provided for mounting optional premier panels
  • All continuous welded seams are finished smooth
  • Body flange trough design is formed around body opening to divert liquid contaminants away from door opening
  • Door has a seamless poured in place gasket
  • Door opens 180 deg for easy access
  • Doors are easily removed and interchangeable
  • Doors are secured to the body with concealed hinge design ON one side and slotted quarter turn flush latches ON the opposite side
  • Enclosure and door are fabricated from code gauge steel
  • Enclosure mounting holes in body provided for direct mounting or optional mounting feet
  • Ground stud provided ON enclosure body with provision ON door
  • Hardware kit contains grounding hardware, 0.312-18 flanged hex nuts for panel mounting and sealing washers for body mounting holes
  • Reduced width flange design increases enclosure opening
  • Utility bracket provides wire management and accessory mounting options
  • Window door enclosures feature flush mounted clear polycarbonate window
Standard
UL 508, CUL, IEC 60529
Sub_Brand
EATON B-LINE SERIES
Type
1-Solid Door Quarter-Turn Flush Latch Slotted
