B-Line B-Line 201610-SDFQR

Name: B-Line 201610-SDFQR
Brand: B-Line
SKU: 2599086
Price: 981.48 USD
Availability: InStock

B-Line 201610-SDFQR

Kirby Risk #: 2599086

UPC: 78205152434, 782051524345, 00782051524345

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: B-Line

Description

Industry Description

TYPE 4X FIBERGLASS PREMIER PAD-LOCKABLE ENCLOSURE, 20X16X10

Modified Industry Description

TYPE 4X FIBERGLASS PREMIER

AD Description

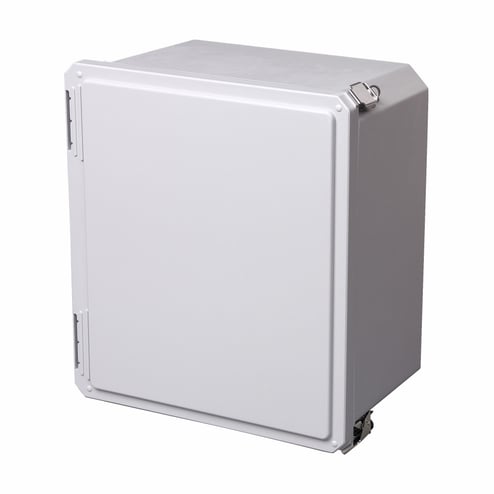

B-Line Premier™ 201610-SDFQR JIC Enclosure, 20 in L x 16 in W x 10 in D, NEMA 4X NEMA Rating, Fiberglass Reinforced Polyester

Application	Electrical/Electronic Control and Instruments In Harsh Environment, Indoor/Outdoor
Color	Gray
Construction	Impact Resistant, Non-Conductive, Light-Weight
Country of Origin	US
Dimensions	10.3400 X 18.1600 X 21.7900
Finish	FGL
Length1	20
Material	Fiberglass Reinforced Polyester
Mounting_Type	Wall
NEMA_Rating	NEMA 4X
Size	16.00 In Width X 10.00 In Depth X 20.00 In Height
Special Features	300 series stainless steel used ON all external hardware Captive screws provide smooth surfaces Chemical resistance Enclosures are an impact resistant, non-conductive, lightweight hot compression molded fiberglass reinforced polyester Flush mounted scratch and abrasion resistant polycarbonate clear cover option provides internal component visibility Full 180 deg door opening Integral mounting bosses utilize threaded brass inserts accepting #10-32 screws for mounting optional panel Non-halogenated and non-flame propagating self extinguishing Padlocking latches provide quick access and optional closure locking (padlock not included) Poured polyurethane seamless gasket provides watertight, dust-tight environmental seal Protects against corrosion, windblown dust and rain, splashing water and hose directed water Rounded edges reduce build-up of dust and debris
Standard	UL/CUL 50, CSA C22.2
Sub_Brand	EATON B-LINE SERIES
Temperature_Rating	-40 to 250
Type	NEMA 4X, Hinge Cover, Quick-Release Pad Lockable Latches
