B-Line B-Line 16128-1

Name: B-Line 16128-1
Brand: B-Line
SKU: 2598817
Price: 771.36 USD
Availability: InStock

B-Line 16128-1

Kirby Risk #: 2598817

UPC: 78205179090, 782051790900, 00782051790900

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: B-Line

Description

Industry Description

TYPE 1 ENCLOSURE, 16X12X8.62

Modified Industry Description

TYPE 1 ENCLOSURE, 16X12X8.62

AD Description

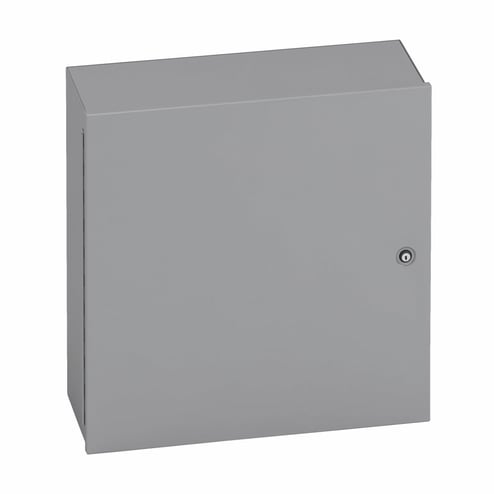

B-Line 16128-1 D80 Subclass Medium Panel Enclosure, 16 in L x 12 in W x 8.62 in D, NEMA 1/IP30, Steel

Application	Electrical Control and Instruments
Color	Gray
Country of Origin	US
Dimensions	8.0000 X 12.0000 X 16.0000
Finish	Polyester Powder Coated
Length1	16
Material	Steel
Mounting_Type	Wall
NEMA_Rating	NEMA 1/IP30
Size	12.00 In Width X 8.62 In Depth X 16.00 In Height
Special Features	3/8-16 collar studs are furnished for mounting optional panel Door is secured to the body with a continuous hinge ON one side and a flush latch mounted to the opposite side Enclosure and door are fabricated from code gauge steel Enclosure body has mounting holes ON the back which are accessible with or without the optional panel installed Flush latch is designed to operate with either coin or screwdriver
Standard	UL 50, CSA C22.2, IEC 60529
Sub_Brand	EATON B-LINE SERIES
Type	D80 Subclass Medium
