Description

Industry Description

TYPE 4X FIBERGLASS PREMIER SERIES PAD-LOCKABLE CLEAR COVER ENCLOSURE, 14X12X8

AD Description

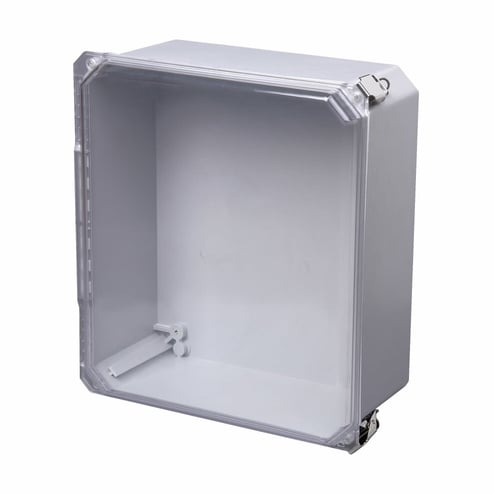

B-Line Premier™ 14128-SDFQRCC JIC Enclosure, 14 in L x 12 in W x 8 in D, NEMA 4X NEMA Rating, Fiberglass Reinforced Polyester

Application	FIBERGLASS ENCLOSURES,TYPE 4X&12 FIBERGLASS ENC
Color	Gray
Construction	Impact Resistant, Non-Conductive, Light-Weight
Country of Origin	US
Dimensions	8.3400 X 13.8600 X 15.4900
Finish	FGL
Length1	8.3400
Material	Fiberglass/Polyester
Mounting_Type	Wall
NEMA_Rating	4X
Size	13.86 In Width X 6.34 In Depth X 15.49 In Height
Special Features	300 series stainless steel used ON all external hardware Captive screws provide smooth surfaces Chemical resistance Enclosures are an impact resistant, non-conductive, lightweight hot compression molded fiberglass reinforced polyester Flush mounted scratch and abrasion resistant polycarbonate clear cover option provides internal component visibility Full 180 deg door opening Integral mounting bosses utilize threaded brass inserts accepting #10-32 screws for mounting optional panel Non-halogenated and non-flame propagating self extinguishing Padlocking latches provide quick access and optional closure locking (padlock not included) Poured polyurethane seamless gasket provides watertight, dust-tight environmental seal Protects against corrosion, windblown dust and rain, splashing water and hose directed water Rounded edges reduce build-up of dust and debris
Standard	UL/CUL 50, CSA C22.2
Sub_Brand	Electrical Enclosures
Type	NEMA 4X, Hinge Clear Cover, Quick-Release Pad Lockable Latches
