B-Line B-Line 14126-4XSLC

Name: B-Line 14126-4XSLC
Brand: B-Line
SKU: 2598723
Price: 2280.45 USD
Availability: InStock

B-Line 14126-4XSLC

Kirby Risk #: 2598723

UPC: 78205170054, 782051700541, 00782051700541

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: B-Line

Description

Industry Description

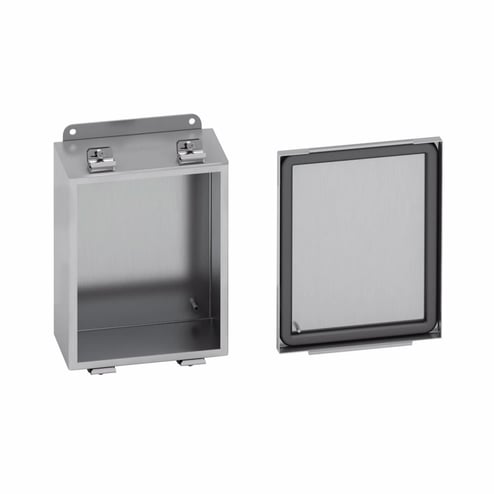

TYPE 4X JIC STAINLESS STEEL LIFT-OFF COVER ENCLOSURE, 14X12X6

Modified Industry Description

TYPE 4X JIC STAINLESS STEEL

AD Description

B-Line 14126-4XSLC JIC Enclosure, 14 in L x 12 in W x 6 in D, NEMA 4X NEMA Rating, 304 Stainless Steel

Application	Electrical Control and Instruments, Indoor/Outdoor
Color	Gray
Country of Origin	US
Dimensions	6.0000 X 12.0000 X 14.0000
Finish	Smooth Brushed
Length1	14
Material	304 Stainless Steel
Mounting	External Feet, Wall
Mounting_Type	External Feet/Wall
NEMA_Rating	NEMA 4X/IP66
Size	12.00 In Width X 6.00 In Depth X 14.00 In Height
Special Features	#10-32 weldnuts are provided for mounting optional panel ON 6 x 4 in and larger enclosures All continuous welded seams are finished smooth Cover has a seamless poured in place gasket Cover is secured to the body with easy to operate stainless steel screw clamps mounted ON all four sides Enclosure and cover are fabricated from 16 ga type 304 or type 316l stainless steel External mounting feet are provided for secure wall mounting Ground stud provided ON cover Protects against corrosion, windblown dust and rain, splashing water and hose directed water
Standard	UL 508, CSA C22.2, IEC 60529
Sub_Brand	EATON B-LINE SERIES
Type	NEMA 4X, IP66, JIC Lift-Off Cover
