B-Line B-Line 14126-12LC

Name: B-Line 14126-12LC
Brand: B-Line
SKU: 2598714
Price: 573.92 USD
Availability: InStock

B-Line 14126-12LC

Kirby Risk #: 2598714

UPC: 78205173080, 782051730807, 00782051730807

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: B-Line

Description

Industry Description

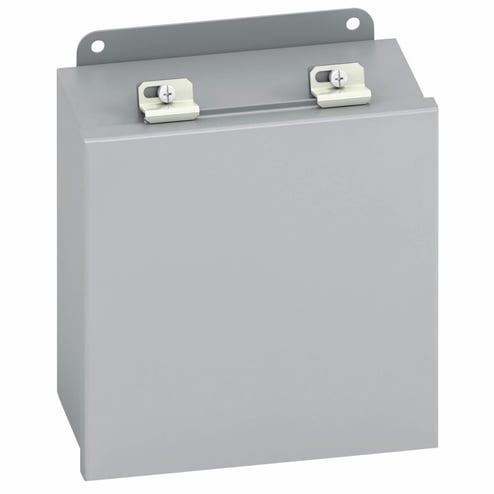

TYPE 12 JIC LIFT-OFF COVER ENCLOSURE, 14X12X6

Modified Industry Description

TYPE 12 JIC LIFT-OFF COVER

AD Description

B-Line 14126-12LC JIC Enclosure, 14 in L x 12 in W x 6 in D, NEMA 12 NEMA Rating, Steel

Application	Electrical Control and Instruments
Color	ANSI 61 Gray
Country of Origin	US
Dimensions	6.0000 X 12.0000 X 14.0000
Finish	Polyester Powder Coated/Phosphate Undercoat
Length1	14
Material	Steel
Mounting	External Feet, Wall
Mounting_Type	External Feet/Wall
NEMA_Rating	NEMA 12/IP65
Size	12.00 In Width X 6.00 In Depth X 14.00 In Height
Special Features	#10-32 weldnuts are provided for mounting optional panel ON 6 x 4 in and larger enclosures All continuous welded seams are finished smooth Chain holds cover to body when screw clamps are released Cover has a seamless poured in place gasket Cover is secured to the body with semi hinges ON one side and easy to operate screw clamps mounted to the opposite side Enclosure and cover are fabricated from 16 ga steel External mounting feet are provided for secure wall mounting Ground stud provided ON cover Hardware and clamps are zinc plated
Standard	UL 508, CSA C22.2, IEC 60529
Sub_Brand	EATON B-LINE SERIES
Type	NEMA 12, IP65, JIC Lift-Off Cover
