B-Line B-Line 1084-4XACHC

Name: B-Line 1084-4XACHC
Brand: B-Line
SKU: 2598308
Price: 820.08 USD
Availability: InStock

B-Line 1084-4XACHC

Kirby Risk #: 2598308

UPC: 78205170182, 782051701821, 00782051701821

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: B-Line

Description

Industry Description

TYPE 4X ALUMINUM JIC CONTINUOUS HINGE COVER ENCLOSURE, 10X8X4

Modified Industry Description

TYPE 4X ALUMINUM JIC CONTINUOUS

AD Description

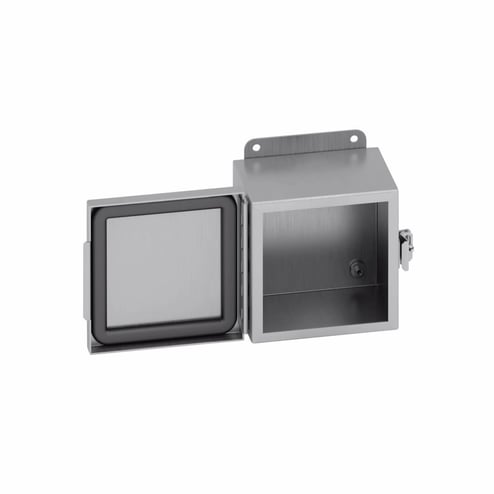

B-Line 1084-4XACHC JIC Enclosure, 10 in L x 8 in W x 4 in D, NEMA 4X/IP66, Aluminum

Application	Electrical Control and Instruments, Indoor/Outdoor
Color	Gray
Country of Origin	US
Dimensions	4.0000 X 8.0000 X 10.0000
Finish	Smooth Brushed
Length1	10
Material	Aluminum
Mounting	External Feet, Wall
Mounting_Type	External Feet/Wall
NEMA_Rating	NEMA 4X/IP66
Size	8.00 In Width X 4.00 In Depth X 10.00 In Height
Special Features	#10-32 weldnuts are provided for mounting optional panel All continuous welded seams are finished smooth Cover has a seamless poured in place gasket Cover is secured to the body with an aluminum continuous hinge and pin ON one side and easy to operate stainless steel screw clamps mounted to the opposite side Enclosure and cover are fabricated from 12 ga, type 5052-H32 aluminum External mounting feet are provided for secure wall mounting Protects against corrosion, windblown dust and rain, splashing water and hose directed water
Standard	UL 508, CSA C22.2, IEC 60529
Sub_Brand	EATON B-LINE SERIES
Type	NEMA 4X, IP66, JIC Continuous Hinge Cover
