B-Line B-Line B3104CT-1/2DCU

Name: B-Line B3104CT-1/2DCU
Brand: B-Line
SKU: 2596174
Price: 9.67 USD
Availability: InStock

B-Line B3104CT-1/2DCU

Kirby Risk #: 2596174

UPC: 78101105619, 781011056193, 00781011056193

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: B-Line

Description

Industry Description

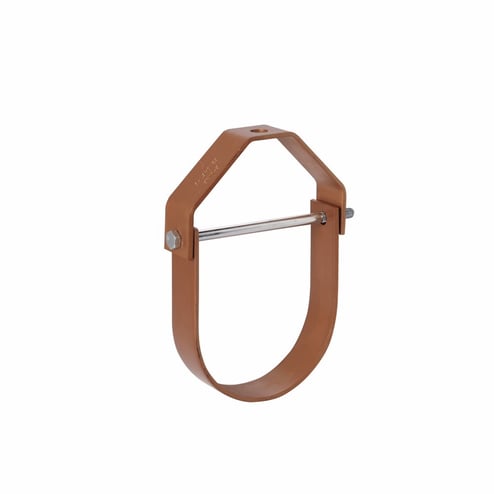

CLEVIS HANGER, 1/2", 3/8"-16, DURA-COPPER

Modified Industry Description

CLEVIS HANGER, 1/2IN, 3/8IN-16,

Application	PIPE HANGERS,MECH.-CLEVIS HANGERS
Color	Copper
Country of Origin	MUL
Dimensions	2-1/4 in L
Finish	DURA COPPER™
Length1	2.2500
Material	Steel
Mounting_Type	Rod
Series	B3104CT
Size	1/2 In
Special Features	1-1/8 in rod take-out, center of pipe to bottom of hanger rod 1-15/16 in center of pipe to top of hanger 2-1/2 in minimum thread length of hanger rod 3/8 in adjustment, top of cross bolt to bottom of hanger rod nut inside the hanger Copper clevis hanger Pipe hangers are designed to support insulated or non-insulated pipe allowing for vertical adjustment and limited movement in the piping system Recommended for the suspension of non- insulated stationary copper tubing lines Recommended for the suspension of non-insulated stationary copper tubing lines
Standard	Federal Specification WW-H-171E, A-A-1192A Type 12, ANSI/MSS SP-69, SP-58 Type 1
Sub_Brand	EATON B-LINE SERIES
Type	Pipe Clevis Hanger
