B-Line B-Line B3054-7/8PLN
B-Line B3054-7/8PLN
Kirby Risk #: 2595863
UPC: 78101102591, 781011025915, 00781011025915
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: B-Line
Description
Industry Description

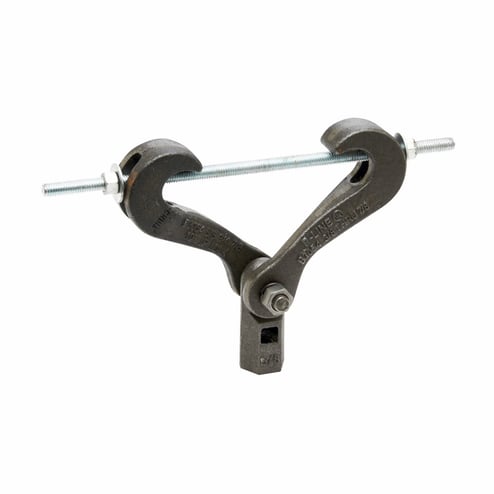

MALLEABLE IRON BEAM CLAMP, 7/8"-9, PLAIN
Modified Industry Description
MALLEABLE IRON BEAM CLAMP, 7/8IN-9,
AD Description
B-Line B3054-7/8PLN Mechanical Beam Clamp, 7/8-9 Rod, 5/8 in THK, 1365 lb Load, Malleable Iron, Plain
Specifications
| Application |
PIPE HANGERS,MECH.-BEAM CLAMPS,For Attaching Hanger Rod To Bottom Flange of a Beam
|
|---|---|
| Country of Origin |
MUL
|
| Dimensions |
1.1200 X 7.5200 X 11.0000
|
| Finish |
Plain
|
| Length1 |
1.1200
|
| Material |
Malleable Iron
|
| Series |
B3054
|
| Size |
5/8 In
|
| Special Features |
Includes Clamping Rod and Nut, Rod Size 7/8 In-9 TPI, Flange Width 3 To 7 In, Design Load 1365 Lb, Weight 292 Lb per 100
|
| Standard |
UL (CANADA AND US), Federal Specification WW-H-171E A-A-1192A Type 30, ANSI/MSS SP-69 SP-58 Type 30
|
| Sub_Brand |
EATON B-LINE SERIES
|
| Type |
Mechanical
|
