Lithonia Lighting Lithonia Lighting LHQM LED R SD M6


Description

Industry Description

Quantum thermoplastic exit/unit combo, LED, Nickel cadmium battery with self-diagnostic, Red, SKU - 186HUJ

Modified Industry Description

120/277V Single Face Emergency Exit UNIT COMBO With LED LA RED LETTERS SELF DIAGNOSTIC

AD Description

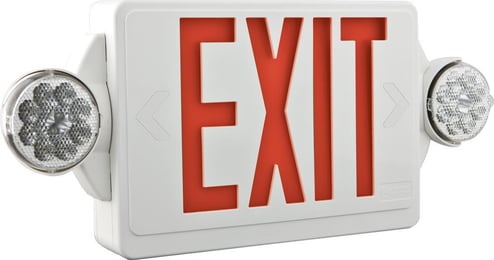

Lithonia Lighting® QUANTUM® LHQM LED R SD M6 Stencil Face Emergency Exit Unit Combo, LED Lamp, 4.3 W Fixture, 120/277 VAC, White Housing, EXIT Legend

Specifications

Amperage Rating
0.05/0.03
Application
Emergency and Safety
Average_Life
10
Background_Color
White
Battery_Runtime
90 min
Brand Name
Lithonia Lighting
Color
White
Color_Rendering_Index_CRI
75
Color_Temperature
4600
Construction
New Construction,Remodel
Country of Origin
US
Environmental_Conditions
Indoor,Outdoor
Finish
Matte
Fixture_Type
Emergency Exit Unit (aka Combo)
Housing_Color
White
Lamp_Included
True
Lamp_Type
LED
Lamp_Wattage
1.5
Legend
EXIT
Letter_Color
Red
Lumens
160
Material
Thermoplastic
Mounting
Surface, Wall
Number_Of_Lamps
2
Power_Source
NiCd Battery
Special Features

  • Conduit entry knockout for 1/2 in flexible conduit, J-box pattern on back panel
  • Easily viewed bright red status indicator
  • Edge connector on printed circuit board ensures long term durability
  • Engineering grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion proof
  • LEDs mounted on primary circuit boards for sign illumination, low energy LED lamp in sign operates in normal
  • Low profile, integrated test switch/pilot light
  • Positive snap-fit tabs hold faceplate securely, yet are easily removable for lamp compartment access, universal, directional chevron inserts are easily removed and reinserted
  • Rugged unibody housing snaps together with no additional fasteners, faceplate and back cover are interchangeable on housing
  • Self-diagnostics
  • Suitable for applications requiring both exit sign and unit equipment
  • The typical life of the exit LED lamp is 10 years
  • Thermal compensation adjusts charger output to provide optimum charge voltage relative to ambient temperature range
  • Two 1.5 W/9.6 V white LED lamp
  • UL 94V-0 flame rating, UV-stable resin resists discoloration from natural and man-made light sources
  • Unique track and swivel arrangement permits full range of direction of lamp head adjustment, universal J-box mounting pattern, tool less access for maintenance, conduit entry position on top of unit
  • Universal J-box mounting pattern
Standard
NOM, UL
Sub_Brand
Lithonia Lighting
Type
Stencil Face
Voltage Rating
120/277
Wattage
Not Applicable
