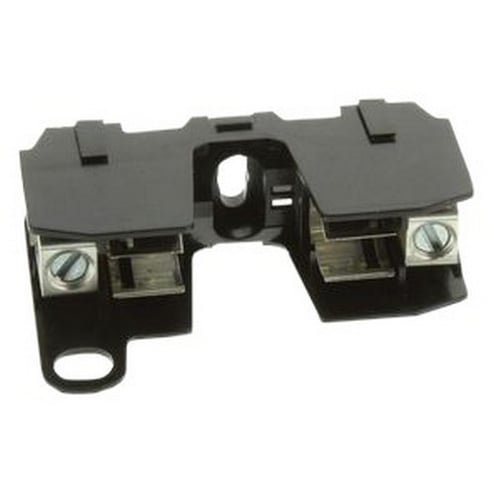

Bussmann Bussmann RM60100-1CR


Description

Industry Description

Fuse Block, One-pole

Modified Industry Description

100A 600V - CLASS H 1 POLE MODULAR FUSEBLOCK W/ BOX LUG

AD Description

Bussmann RM60100-1CR Fuse Block, 600 VAC, 70 to 100 A, Class R, 1 to 3 AWG, 4 to 6 AWG, 8 AWG Wire, 1 Pole

Specifications

Amperage Rating
100
Application
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Brand Name
Bussmann
Class
R
Connection
Knife blade end x knife blade end
Country of Origin
MX
Fuse_Diameter
1.34/1.16
Material
Thermoplastic
Package_Quantity
1.000
Poles
1
Special Features

  • 1.34 in dia for Fusetron® and Limitron®, 1.16 in dia for Low-Peak® fuses
  • 1/0 to 3 AWG, (2) 4 to 6 AWG copper, 4 to 6 AWG, (2) 8 AWG copper, 8 AWG, (2) 10 to 14 AWG copper, 10 to 14 AWG copper, 10 to 12 AWG aluminum solid and stranded wire
  • 200 to 600 A blocks meet the higher UL creep and clearance requirements for industrial power distribution standards (UL 98, UL 69, UL 489, UL 891 and UL 869A)
  • 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards (UL 98, UL 67, UL 489, UL 891 and UL 869A)
  • Blocks dovetail together to assemble required number of poles
  • Design meets UL creep and clearance requirements for industrial control circuits (UL 508 and UL 845)
  • Design meets UL creep and clearance requirements for industrial power circuits (UL 508 and UL 845)
  • Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
  • Integral dovetails allow snapping together multiple poles at point of use for greater application flexibility
  • Standard fuse clip reinforcing springs enhance electrical contact
  • Standard phase barriers between poles for additional safety
  • Up to four mounting holes per pole increase installation flexibility
Standard
Contact Manufacturer,RoHS Compliant
Sub_Brand
Bussmann Series
Type
Modular Knife Blade
Voltage Rating
600
