Bussmann Bussmann FRN-R-20ID

Name: Bussmann FRN-R-20ID
Brand: Bussmann
SKU: 2590877
Price: 45.79 USD
Availability: InStock

Bussmann FRN-R-20ID

Kirby Risk #: 2590877

UPC: 05171220439, 051712204392, 00051712204392

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Bussmann

Description

Industry Description

20AMP 250V RK5 TD FUSE

Modified Industry Description

20A 250V - RK5 WITH INDICATOR FUSETRON DUAL ELEMENT , TIME DELAY FUSE

AD Description

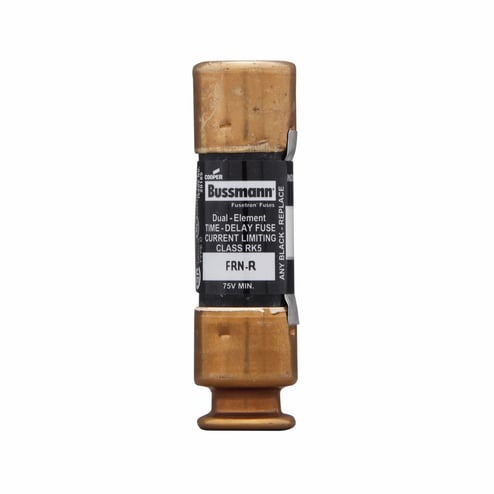

Bussmann Fusetron™ FRN-R-20ID FRN-R Current Limiting Time Delay Fuse, 20 A, 250 VAC/125 VDC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body

Amperage Rating	20
Application	Combination Starters, Motor Control Centers, Machinery Disconnects, Power Panelboards
Brand Name	Bussmann
Connection	Ferrule End X Ferrule End
Country of Origin	MX
Element	Dual
Interrupt_Rating	20 kAIC at 125 Vdc200 kAIC at 250 Vac
Package_Quantity	1
Response_Time	8 S at 500%
Size	0.56 In Diameter X 2.00 In Length
Special Features	200 kA at 250 VAC, 20 kA at 125 VDC interrupt rating 8 s (minimum) at 500% rated current response time Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection Helps protect motors against burnout from 1-phasing on 3-phase systems Helps protect motors against burnout from overloads Open fuse indication Provides motor overload, ground fault and short circuit protection Simplifies and improves blackout prevention (via selective coordination) The overload element provides protection against low level overcurrent of overloads and will hold an overload which is 5 times the amp rating of the fuse for a minimum of 8 s
Standard	UL 248-12, CSA C22.2, CE
Sub_Brand	Cooper Bussmann
Type	Time Delay, Current Limiting
Voltage Rating	250/125
