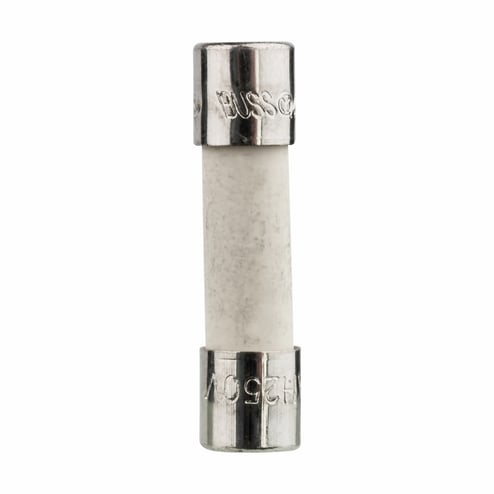

Bussmann Bussmann BK/S501-630-R


Description

Industry Description

Fast-Acting, High-Breaking Capacity Fuse, 630A, Electronic circuits, Ferrule end X ferrule end, 50 Hz, 1500 A at 250 vac, Bulk 100, 5.20 mm diameter X 20.00 mm height, Small dimension, European (IEC), 250 Vac or less, 32 Vdc (self certified

AD Description

Bussmann BK/S501-630-R Small Dimension Fast Acting Fuse, 630 mA, 250 VAC/32 VDC, 1500 A Interrupt, Cylindrical Body

Specifications

Amperage Rating
630
Application
Ind Facilities & Factories - Facility: Safety and Security Systems
Connection
Ferrule End X Ferrule End
Country of Origin
CN
Dimensions
0.2047 X 0.2047 X 0.7874
Frequency_Rating
50
Interrupt_Rating
1.5 kAIC at 250 Vac
Length1
2.3000
Material
Nickel-plated endcap constructionCeramic tube
Special Features

  • 1500 A at 250 VAC interrupt rating
  • 60 min minimum at 1.5 In, 30 min maximum at 2.1 In, 10 ms minimum and 3 s maximum at 2.75 In, 3 ms minimum and 300 ms maximum at 4 In, 20 ms maximum at 10 In response time
  • Fast acting for maximum protection
  • High break capacity for use in higher fault energy electronic circuitry
  • Nickel plated brass end caps
Standard
VDE,CCC Marked,RoHS Compliant,CE Marked
Sub_Brand
Bussmann Series
Type
Fast-acting fuse
Voltage Rating
250 Vac or less, 32 Vdc (self certified)
