3M 3M 20001
3M 20001
Kirby Risk #: 2580258
UPC: 05400713236, 054007132363, 00054007132363
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

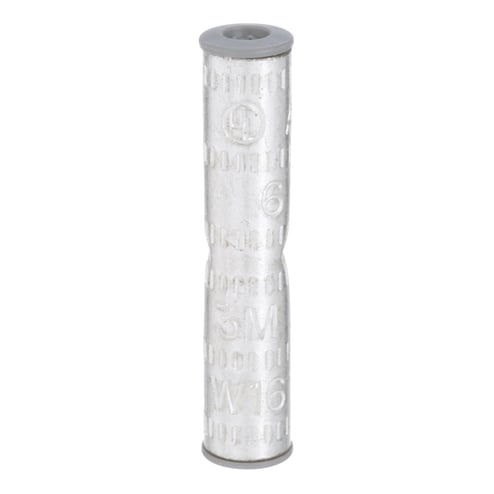

The 3M™ Scotchlok™ Connectors 20000 Series can be used with either copper or aluminum conductors. These aluminum connectors feature color coded end caps for identification. Contact aid provided in connector is compatible with poly/EPR insulations. Each connector is electro tin plated to resist electrolytic corrosion, and have a solid center stop. (UL 486B Listed)
Modified Industry Description
COPPER/ALUMINUM CONNECTOR
AD Description
Scotchlok™ 054007-13236 Compression Splice Connector, 35 kV, 6 AWG Wire, Aluminum
Specifications
| Application |
Aluminum or Copper Conductors
|
|---|---|
| Color |
Gray
|
| Country of Origin |
US
|
| Dimensions |
1.62 in OAL
|
| Length1 |
4.0000
|
| Material |
Aluminum
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
3M
|
| Type |
Compression
|
| Voltage Rating |
35 kV
|
