3M 3M 40041


Description

Industry Description

3M™ Scotchlok™ 40000 1 Hole Compression Lug is suitable for use on copper or aluminum conductors. The lug has a standard barrel that ensures a secure fit. Aluminum construction offers high conductivity and an electro tin plated finish resists corrosion. It is rated for 35 kV voltage applications.

Modified Industry Description

COPPER/ALUMINUM ONE-HOLE LUG

AD Description

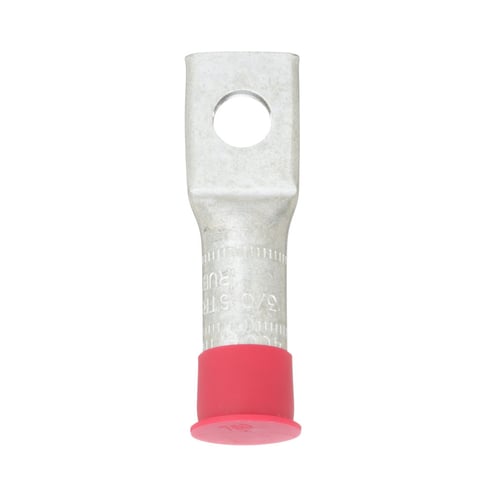

Scotchlok™ 40041 1-Hole Compression Lug, 3/0 AWG Conductor, 1/2 in Stud, Aluminum

Specifications

Application
Aluminum or Copper Conductors
Color
Ruby
Conductor Size
3/0 AWG
Country of Origin
US
Dimensions
3.44 in L x 1.06 in W
Length1
4.5000
Material
Aluminum
Special Features

  • Chamfered ends ensure simplicity and ease of conductor insertion
  • Contact aid provided in the lug barrel is compatible with poly/EPR insulation
  • Each lug is electro-tin plated to resist electrolytic corrosion
  • These aluminum lugs feature color coded end caps for identification
  • They are designed to be crimped onto either aluminum or copper conductors
Standard
UL
Sub_Brand
3M
Type
1-Hole
Voltage Rating
35 kV
