3M 3M MNU14-250DFIK


Description

Industry Description

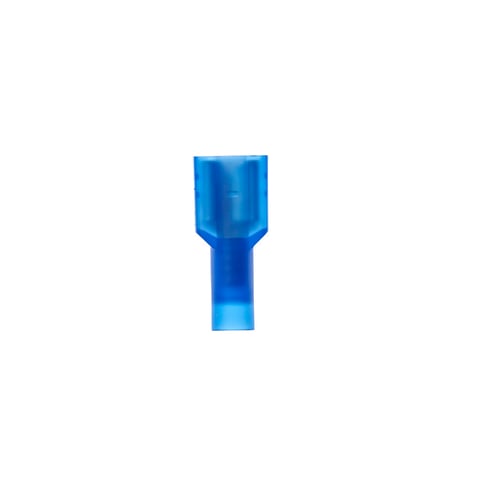

3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

FULLY NYLON INSULATED BUTTED SEAM

AD Description

Scotchlok™ MNU14-250DFIK Disconnect Tab, 16 to 14 AWG Conductor, 1/4 in Tab, 0.08 in ID x 0.25 in L Butted Barrel, ETP Copper, Blue, Insulated

Vendor Description

Simplify the process of disconnecting wires with our 3Mâ„¢ Scotchlokâ„¢ Color-Coded Female Disconnect Terminal. Its blue nylon sleeve extends the life of an installation by fully preventing abrasions or other impact damage, and its flared, stepped design helps prevent mistakes that can come while crimping. The butted-seam barrel design makes sure that, even after crimping, the installation has electrical contact. The terminal has a tongue that fits over its male counterpart for easy pairing and disconnecting. This terminal is RoHS 2011/65/EU Compliant, CSA Certified and UL Listed for use with your wires.

Specifications

Color
Blue
Conductor Type
Fully Insulated
Conductor Size
16 to 14 AWG
Country of Origin
US
Dimensions
0.032 in THK x 1/4 in W Pad
Length1
5.3000
Material
ETP Copper
Special Features

  • 0.145 in OD nylon insulated, female connection
  • Attached to mating part by tongue of female part slipping over male tab
  • Use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect
Standard
UL and CSA
Sub_Brand
3M
Temperature_Rating
-40 to 221 deg F
Type
Disconnect
Voltage Rating
600 VAC
