3M 3M 5536A-750-CU


Description

Industry Description

3M™ Cold Shrink QS-III Inline Shielded Cable Splice Kits 5535A and 5536A Series are inline splices for joining 35 kV tape shield, wire shield, UniShield® or longitudinally corrugated (LC) shielded power cables. The cold shrink splice body is a one-piece molded design made of specially formulated silicone rubbers, while the jacketing is made of EPDM rubber for its special physical properties.

Modified Industry Description

Cold shrink splice kit

AD Description

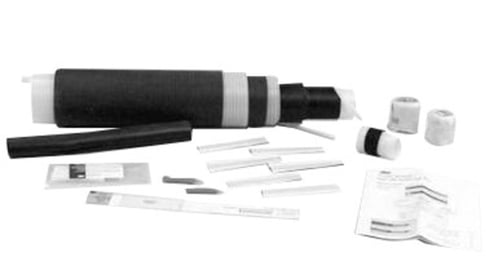

3M™ 5536A-750-CU Cold Shrink QS-III Splice Kit, 35 kVAC, 750 kcmil Conductor, 2 ft 11 in L Splice, Silicon Rubber

Vendor Description

3M™ 5536A Series Cold Shrink QS-III Splice Kit is an inline splice designed to join 35 kV tape shield, wire shield, UniShield® or longitudinally corrugated shielded power cables. The cold shrink design fits type MV-90/MV-105 cables with copper conductors while ensuring a quick installation and excellent cable size transitions. The kit is 15000 A rated for faults current protection.

Specifications

Color
Black
Conductor Size
750
Country of Origin
US
Dimensions
3.9 in Dia
Length1
25.7000
Material
Silicon Rubber
Number Of Conductors
1
Series
5536A
Special Features

  • 0.51 to 1.7 in OD connector
  • 1/case
  • 1090 psi tensile strength
  • 370 V/mil dielectric strength
  • 6 in aluminum/copper compression length, 6-1/2 in copper compression length, 5.12 in shear bolt connector length
  • 610% elongation
  • Accommodates 750 kcmil size copper conductors
  • Cold shrink design for quick and easy installation
  • Copper conductor
  • Designed for in-line splicing, feeder and distribution circuits, size transition splicing, direct burial installations and submerged locations
  • High voltage, production tested for partial discharge and AC ensure reliability
  • In-line splice for joining tape shield, wire shield, UniShield® or longitudinally corrugated shielded power cables
  • Silicon rubber splice body provides good high and low temperature performance and the EPDM rubber jacket offers physical protection
  • Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface
  • The cold shrink design fits type MV-90/MV-105 cables with copper conductors while ensuring a quick installation and better cable size transitions and 15,000 a rated for faults current protection
  • Used with in-line splicing, feeder and distribution circuits, tape, wire, UniShield® and longitudinally corrugated (LC) shielded cables, transitions from shielded to neutral power cables, copper or aluminum conductors, size transition splicing, direct burial installations, submerged locations
Sub_Brand
3M
Temperature_Rating
105 to 140
Type
Cold Shrink QS-III
Voltage Rating
35
