3M 3M MVU14-10R/LK
3M MVU14-10R/LK
Kirby Risk #: 2578852
UPC: 05400701453, 054007014539, 00054007014539
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

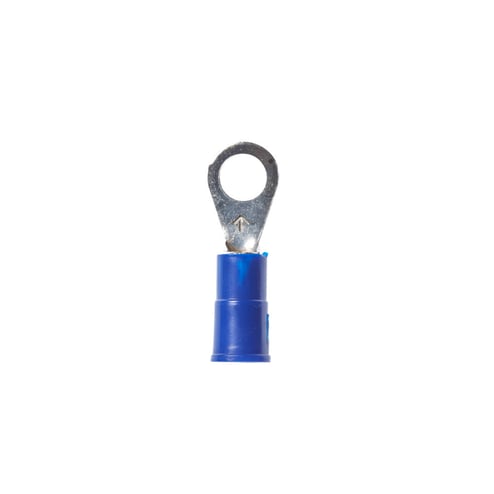

3M™ Scotchlok™ Color-Coded Large Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
VINYL INSULATED BUTTED SEAM RING
AD Description
Scotchlok™ 054007-01453 Standard Ring Tongue Terminal, 16 to 14 AWG Conductor, 0.93 in L, 0.07 in ID x 0.25 in L Butted Barrel, ETP Copper, Blue
Specifications
| Color |
Blue
|
|---|---|
| Conductor Size |
16 to 14 AWG
|
| Country of Origin |
US
|
| Dimensions |
0.31 in W x 0.03 in THK
|
| Length1 |
0.93 in
|
| Material |
ETP Copper
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Temperature_Rating |
-40 to 221 deg F
|
| Type |
Standard
|
| Voltage Rating |
600 to 1000 VAC
|
