3M 3M MU10-14R/SK
3M MU10-14R/SK
Kirby Risk #: 2578591
UPC: 05400701882, 054007018827, 00054007018827
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

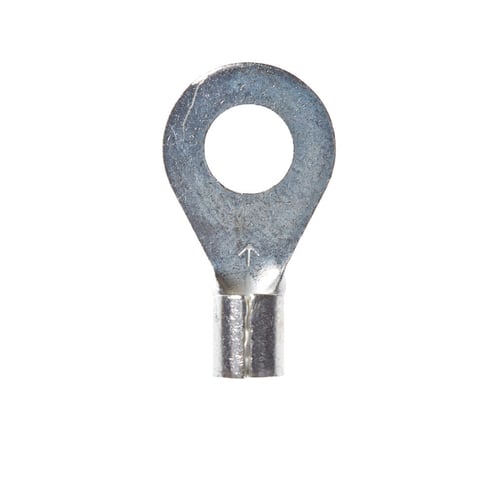

3M™ Scotchlok™ Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
NON-INSULATED BUTTED SEAM RING
AD Description
Scotchlok™ 054007-01882 Standard Ring Tongue Terminal, 12 to 10 AWG Conductor, 0.96 in L, 0.135 in ID x 0.25 in L Butted Barrel, ETP Copper, Yellow
Specifications
| Color |
Yellow
|
|---|---|
| Conductor Type |
Non-Insulated
|
| Conductor Size |
12 to 10 AWG
|
| Country of Origin |
US
|
| Dimensions |
0.53 in W x 0.04 in THK
|
| Length1 |
0.96 in
|
| Material |
ETP Copper
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Temperature_Rating |
347 deg F
|
| Type |
Standard
|
| Voltage Rating |
600 to 1000 VAC
|
