3M 3M 20006
3M 20006
Kirby Risk #: 2578498
UPC: 05400713285, 054007132851, 00054007132851
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description
The 3M™ Scotchlok™ Connectors 20000 Series can be used with either copper or aluminum conductors. These aluminum connectors feature color coded end caps for identification. Contact aid provided in connector is compatible with poly/EPR insulations. Each connector is electro tin plated to resist electrolytic corrosion, and have a solid center stop. (UL 486B Listed)
Modified Industry Description
COPPER/ALUMINUM CONNECTOR
AD Description

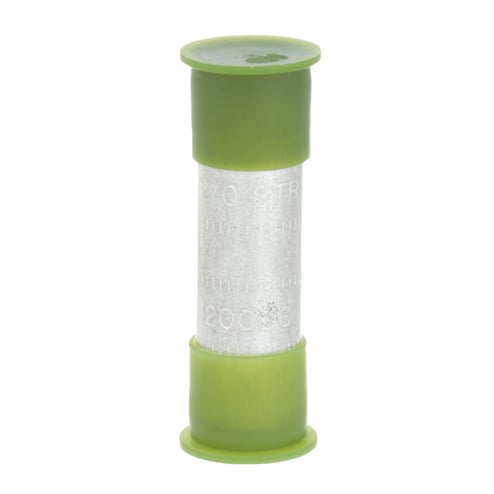

Scotchlok™ 054007-13285 Compression Splice Connector, 35 kV, 2/0 AWG Wire, Aluminum
Vendor Description
3M™ CI-T Transition Splice Connector is ideal for splicing applications on aluminum or copper cable where joining of 2 different conductor sizes is needed. Its aluminum construction offers high conductivity and an electro-tin-plated finish resists corrosion. It is rated for 35 kV voltage applications.
Specifications
| Application |
Aluminum or Copper Conductors
|
|---|---|
| Country of Origin |
US
|
| Length1 |
4.0000
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
3M
|
| Type |
Standard Barrel
|
