3M 3M 7655-S-HSG-4


Description

Industry Description

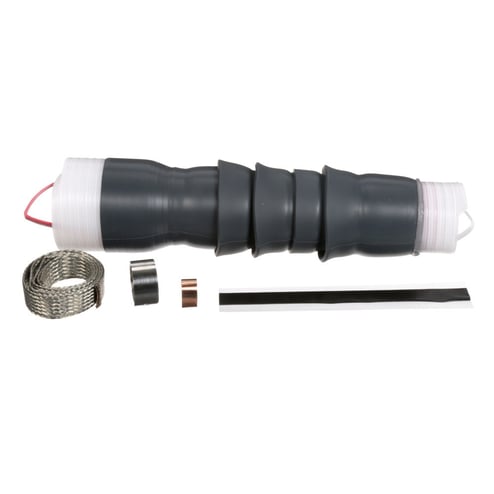

3M™ Cold Shrink QT III 7650 S HSG & 7660 S HSG Series Termination Kit includes a single phase, high fault current termination. It ensures a pliable, tight seal for tape shield, longitudinally corrugated shield and wire over tape shield power cables. The conjunction of high dielectric constant material and silicone sealing compounds allow the termination to withstand voltages of 5 to 35kV.

Modified Industry Description

COLD SHRINK 4 SKIRT TERMINATION

AD Description

3M™ 054007-42207 QT-III 7650-S-HSG Cold Shrink Insulated Termination Kit With High Ampacity Ground Connection and High-K Stress Relief, For Use With Longitudinally Corrugated, Tape Shield and Wire Over-Tape Shield Cable, Silicone Rubber

Vendor Description

3M™ cold shrink QT-III 7650-S-HSG and 7660-S-HSG series termination kit includes a 1-phase, high fault current termination. It ensures a pliable, tight seal for tape shield, longitudinally corrugated shield and wire over tape shield power cables. The conjunction of high dielectric constant material and silicone sealing compounds allow the termination to withstand voltages of 5 to 35 kV. 3M™ cold shrink QT-III 7650-S-HSG and 7660-S-HSG series termination kit is designed for terminating medium voltage, solid dielectric shielded power cables. The UV stable, track- and erosion-resistant construction makes the termination suitable for outdoor applications. The lower surface stress, high dielectric constant material provides an optimized BIL performance while ensuring a leak-proof, compact fit.

Specifications

Application
Outdoor
Conductor Size
1000 kcmil; 1250 kcmil; 1500 kcmil; 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil
Country of Origin
US
Length1
15.7000
Special_Features

  • Accommodates wire sizes of 700 to 1500 kcmil at 5 kV, 600 to 1250 kcmil at 8 kV, 500 to 1000 kcmil at 15 kV and 250 to 800 kcmil at 25/28 kV
  • High dielectric constant material regulates the distribution of electric field stress
  • Includes a 1-phase, cold shrink termination
  • Provides a void-free seal to tape shield, longitudinally corrugated shield and wire over tape shield power cables
  • Unique step core design and silicone sealing compounds enable easier installation
  • Withstands voltages of 5 to 35 kV and is 150 kV BIL-rated

Standard
IEEE
Sub_Brand
3M
Type
QT-III
Voltage Rating
892.857/5k/8k/15k
