3M 3M 5412R-CIR-4/0


Description

Industry Description

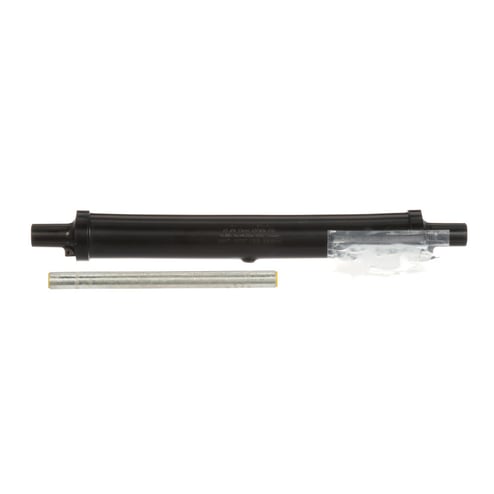

3M™ 5411R Series Molded Rubber QS II Splice Kit is a 15kV 1 piece inline splice perfect to repair damaged cables. It is suitable to use on 15kV jacketed concentric neutral (JCN) or concentric neutral (CN) cables with copper or aluminum conductors. Its elongated design ensures the easy removal of damaged cables up to 6 inches.

Modified Industry Description

MOLDED RUBBER INLINE SPLICING KIT

AD Description

3M™ 054007-50101 5412R QS-II Splice Kit, 15 kVAC, 1.16 in Cable, 4/0 AWG Conductor, 18.4 in L Splice, EPDM Rubber

Vendor Description

3M™ 5412R Series Molded Rubber QS-II Splice Kit is a 1-piece class inline splice perfect to repair the damaged cable. It is suitable to use on 15kV jacketed concentric neutral (JCN) or concentric neutral (CN) cables with copper or aluminum conductors. Its elongated design ensures the easy removal of damaged cables up to 6 inches.

Specifications

Color
White
Conductor Size
4/0
Country of Origin
US
Dimensions
2.47 in Dia
Length1
21.5000
Material
EPDM Rubber
Number Of Conductors
1
Series
5412R
Special Features

  • 1-piece in-line splice is perfect to repair damaged JCN or CN cables up to 6 in
  • 1/case
  • 1177 V/mil at 25 mil thick slab, 518 V/mil at 100 mil slab dielectric strength
  • 4/0 AWG stranded conductor size
  • 570% elongation
  • 900 psi tensile strength
  • Computer design provides a compact size and optimal distribution of the electrical field
  • Production tested for partial discharge and AC ensure reliability
  • Special 3M CIR4/0 repair connector, for a one piece connection to bridge across the gap resulting from the removal of damaged cable
  • Specially formulated, peroxide cured EPDM rubber construction
Sub_Brand
3M
Temperature_Rating
90 to 130
Type
QS-II
Voltage Rating
15
