3M 3M 7695-S-4-3W


Description

Industry Description

3M™ Cold Shrink QT III 7600 S 3W Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.

Modified Industry Description

Outdoor 3 Conductor Termination Kit Cables

AD Description

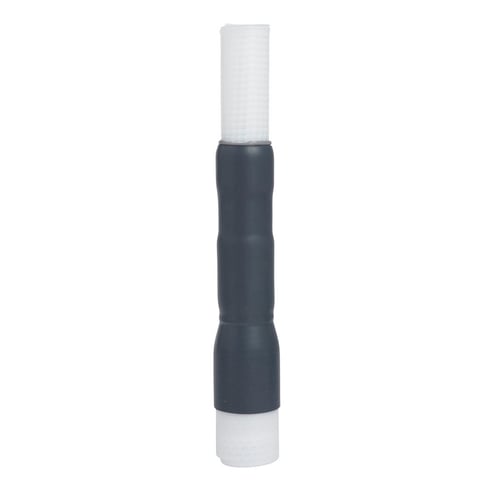

3M™ 054007-04754 QT-III 7600-S-3W Cold Shrink Insulated Termination Kit, For Use With 3-Conductor Copper Tape Shield Cable without Ground Wire, UniShield® and Wire Shield Cable, Silicone Rubber

Vendor Description

3M™ cold shrink QT-III 7600-S-3W series termination kit includes a skirted, 3-phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35 kV. 3M™ cold shrink QT-III 7600-S-3W series termination kit is designed for terminating medium voltage, 3/C-shielded cables without ground wires. The track-resistant, silicone rubber construction makes the termination suitable for outdoor applications. The lower surface stress, high dielectric constant material offers an optimized BIL performance while ensuring a leak-proof, compact fit. The short installed length of the termination makes it ideal for use in compact spaces, comprising motors, starters, switchgear, variable speed drives, transformers and other similar connections.

Specifications

Application
Outdoor
Conductor Size
1000 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil
Country of Origin
US
Length1
18.9370
Special Features

  • Accommodates wire sizes of 800 to 1000 kcmil at 5 kV, 750 to 1000 kcmil at 8 kV, 200 to 325 sq-mm at 15 kV and 300 to 500 kcmil at 25/28 kV
  • High dielectric constant material regulates the distribution of electric field stress
  • Includes a 4-skirt, 3-phase, cold shrink termination
  • Integrated design allows for easier installation in limited spaces, while sealing compounds provide constant radial pressure
  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • Withstands voltages of 5 to 35 kV and is 150 kV BIL-rated
Standard
AEIC; IEC; JIS
Sub_Brand
3M
Type
QT-III
Voltage Rating
892.857/5k/8k/15k
